Grain blower installation.

Blower equipment, a six-way valve and aligned piping along an existing bin row.

Explore 8 photos

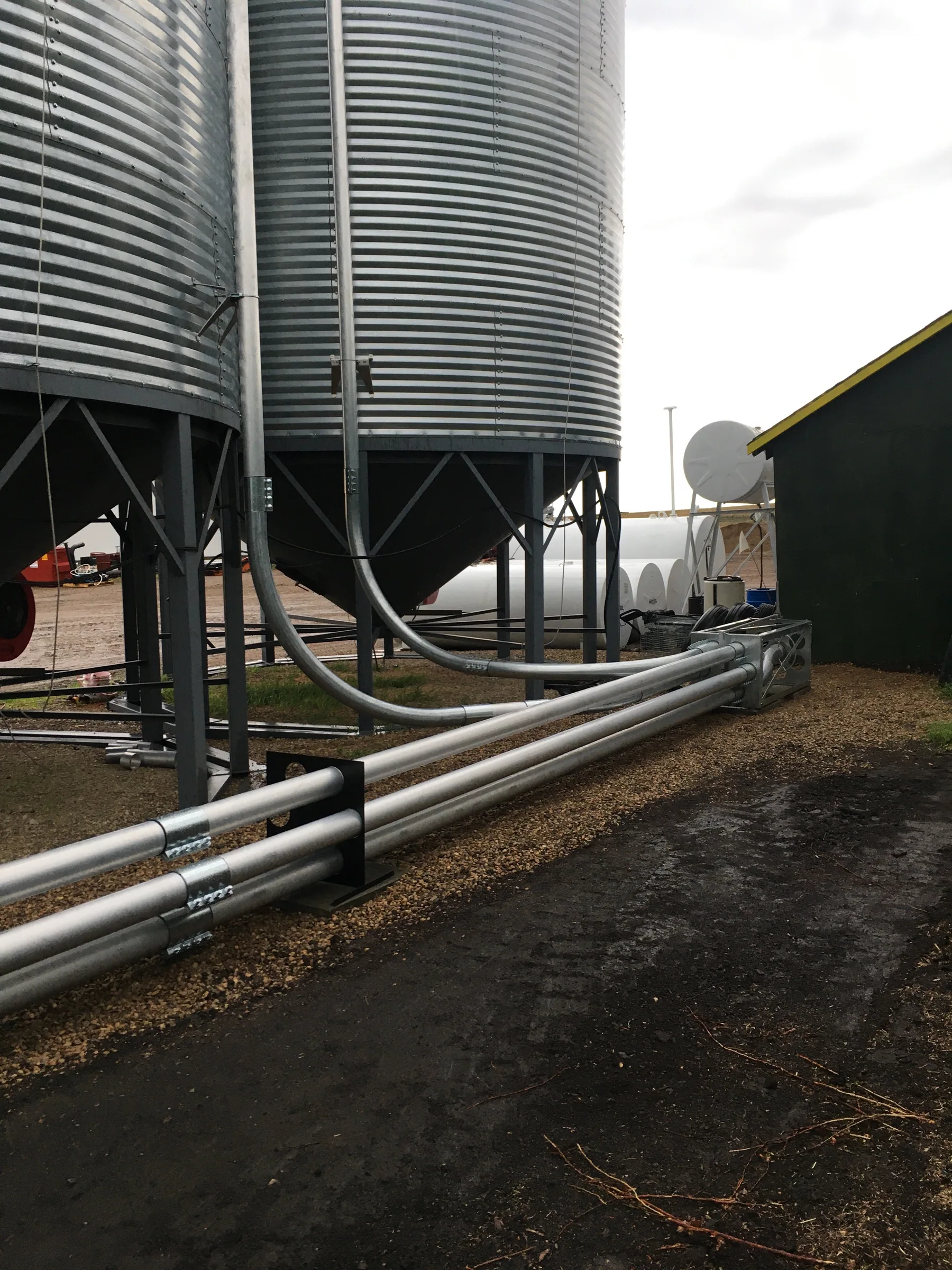

Blower piping and elbows fitted along the bins
Blower piping and elbows fitted along the bins

The work.

The installation began with ground preparation and patio-block bases for the blower equipment and distribution valve. Pipe runs were then laid out along the bins, with laser measurements used to establish where the elbows would meet each bin.

01 / THE DETAILS

Set out the pipe runs

Elevations and elbow positions were measured before fitting the connections.

02 / THE DETAILS

Attention at each joint

Careful alignment minimized gaps between pipe sections—an important detail where abrasive grain passes through banded joints.

The photo collection

Take a closer look.

Open any photo to enlarge it. Use the arrows to browse, or zoom in to inspect the details.

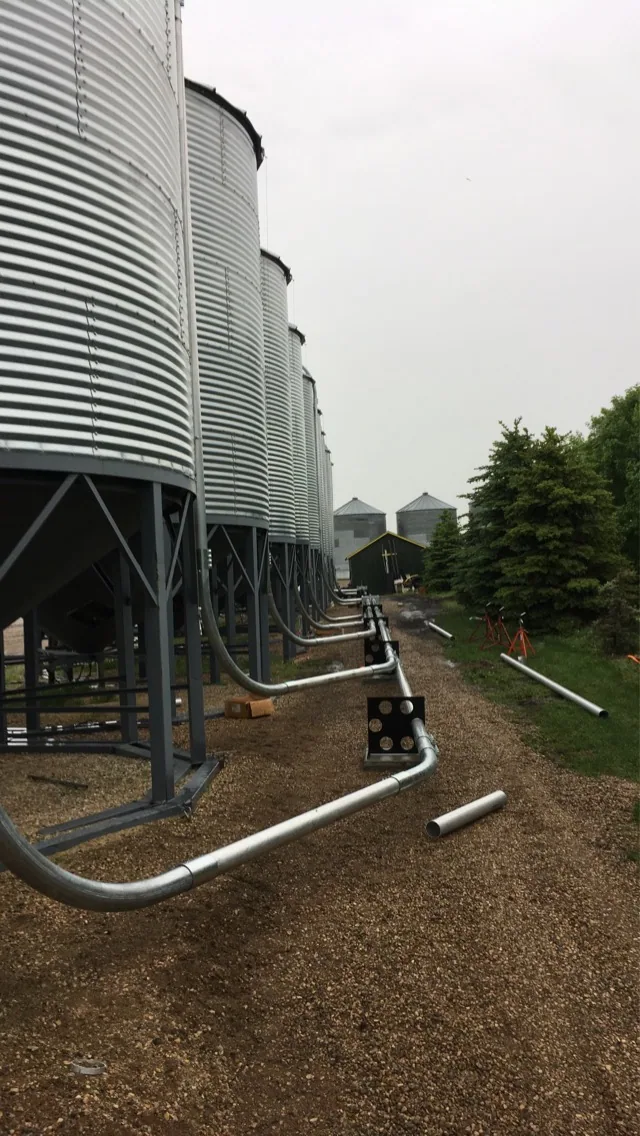

Blower piping and elbows fitted along the bins
01Blower piping and elbows fitted along the bins

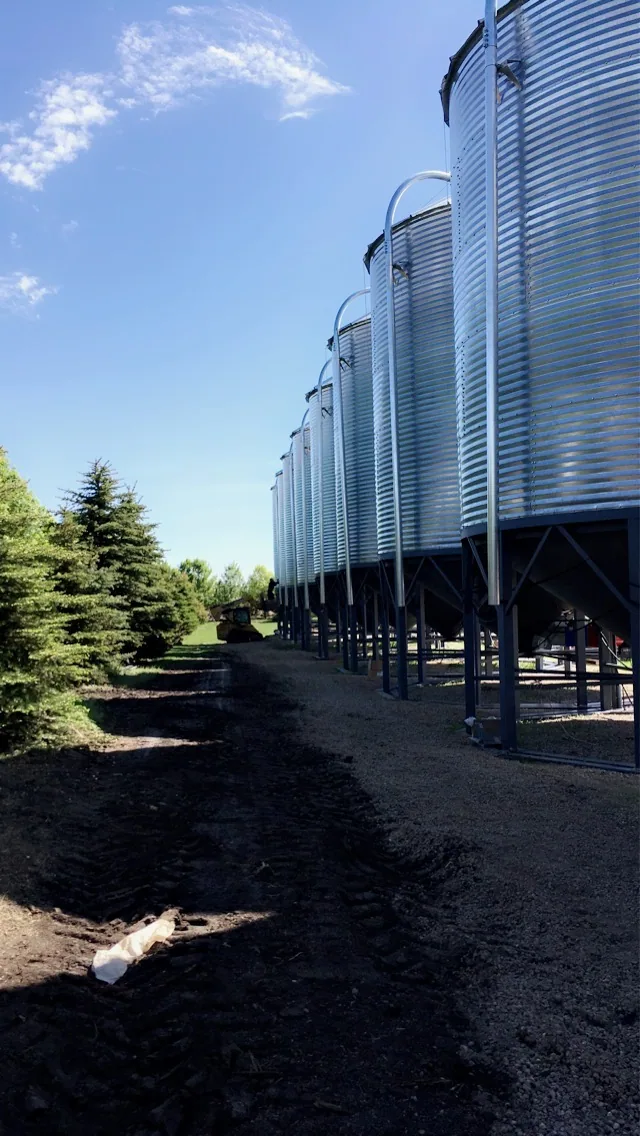

Ground preparation alongside the bin row
02Ground preparation alongside the bin row
Ground preparation alongside the bin row
03Ground preparation alongside the bin row

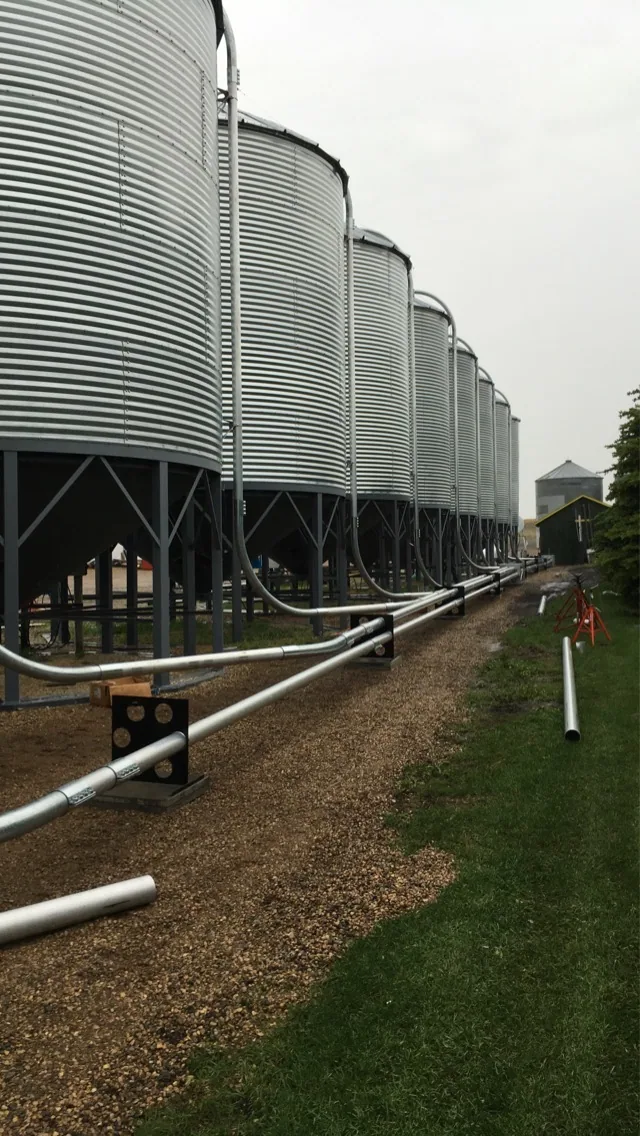

Blower piping and elbows fitted along the bins
04Blower piping and elbows fitted along the bins

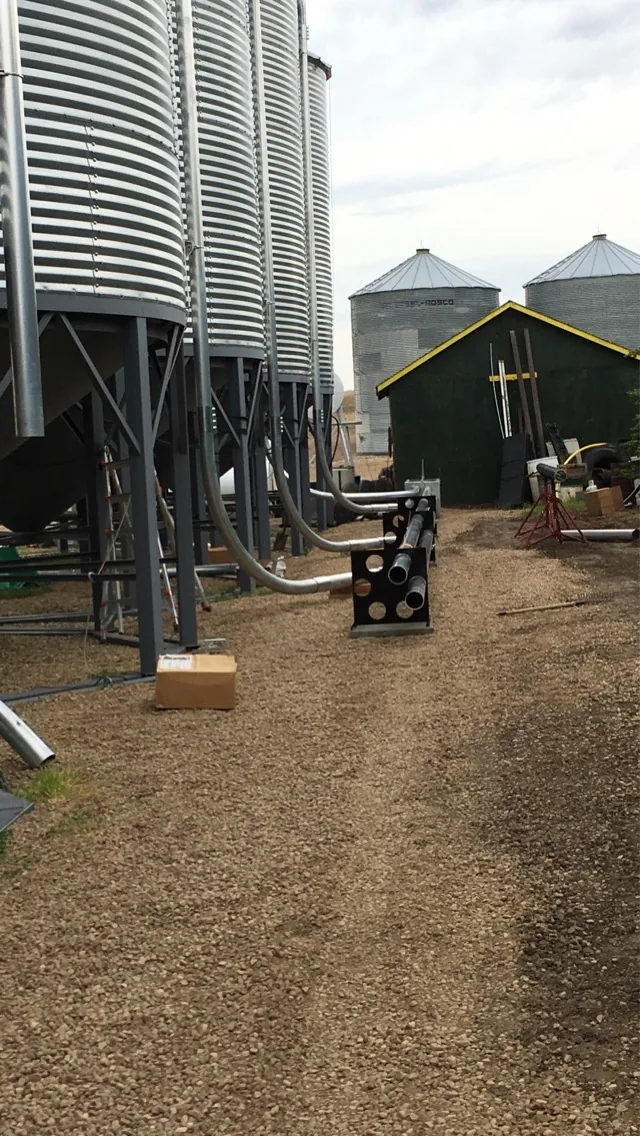

Blower piping and elbows fitted along the bins
05Blower piping and elbows fitted along the bins

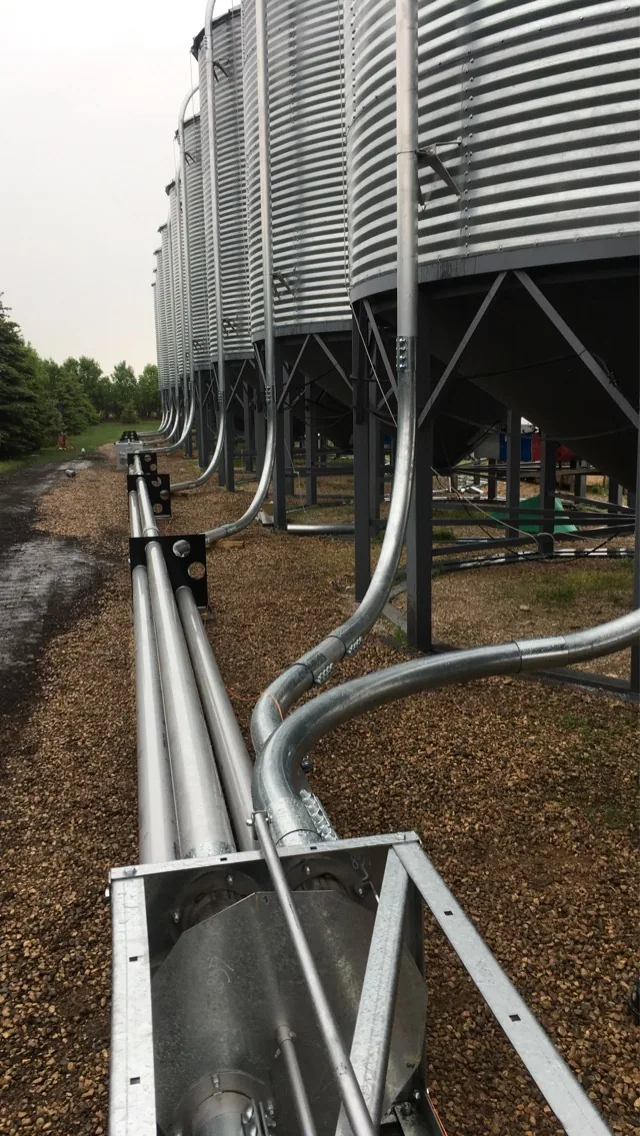

Blower piping and elbows fitted along the bins
06Blower piping and elbows fitted along the bins
Blower piping and elbows fitted along the bins
07Blower piping and elbows fitted along the bins
Blower piping and elbows fitted along the bins
08Blower piping and elbows fitted along the bins
