Grain dryer & double-run conveyors.

Dryer, bucket elevators and a long double-run conveyor aligned across bins at different elevations.

Explore 24 photos

Long double-run conveyor aligned above the storage bins

The work.

This grain-handling installation connected wet bins, a Mathews Company dryer, cooling bins and flat-bottom storage. Bucket elevators, under-bin drags and overhead double-run conveyors brought the equipment together. The long conveyor above the storage bins required particular attention to alignment.

01 / THE DETAILS

Straight across changing elevations

Laser measurements established tower positions and bin heights for an approximately 200-foot double-run conveyor.

02 / THE DETAILS

Transitions made to fit

Individual transitions accommodated the different bin elevations while keeping the overhead conveyor straight and level.

03 / THE DETAILS

Connected equipment

Wet-grain feed, dryer discharge, cooling and storage were considered together when fitting the conveying equipment.

The photo collection

Take a closer look.

Open any photo to enlarge it. Use the arrows to browse, or zoom in to inspect the details.

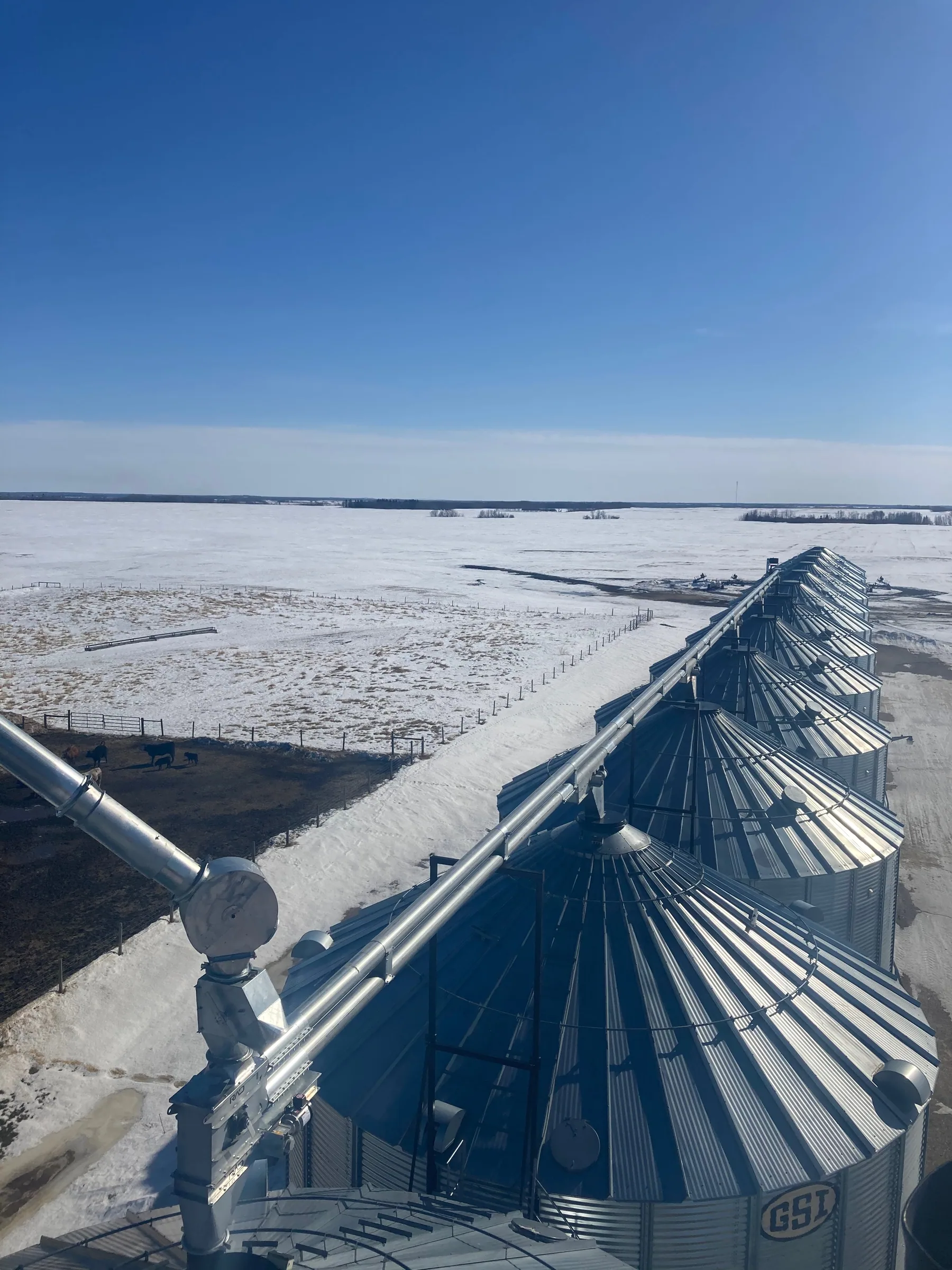

Long double-run conveyor aligned above the storage bins — 01Long double-run conveyor aligned above the storage bins

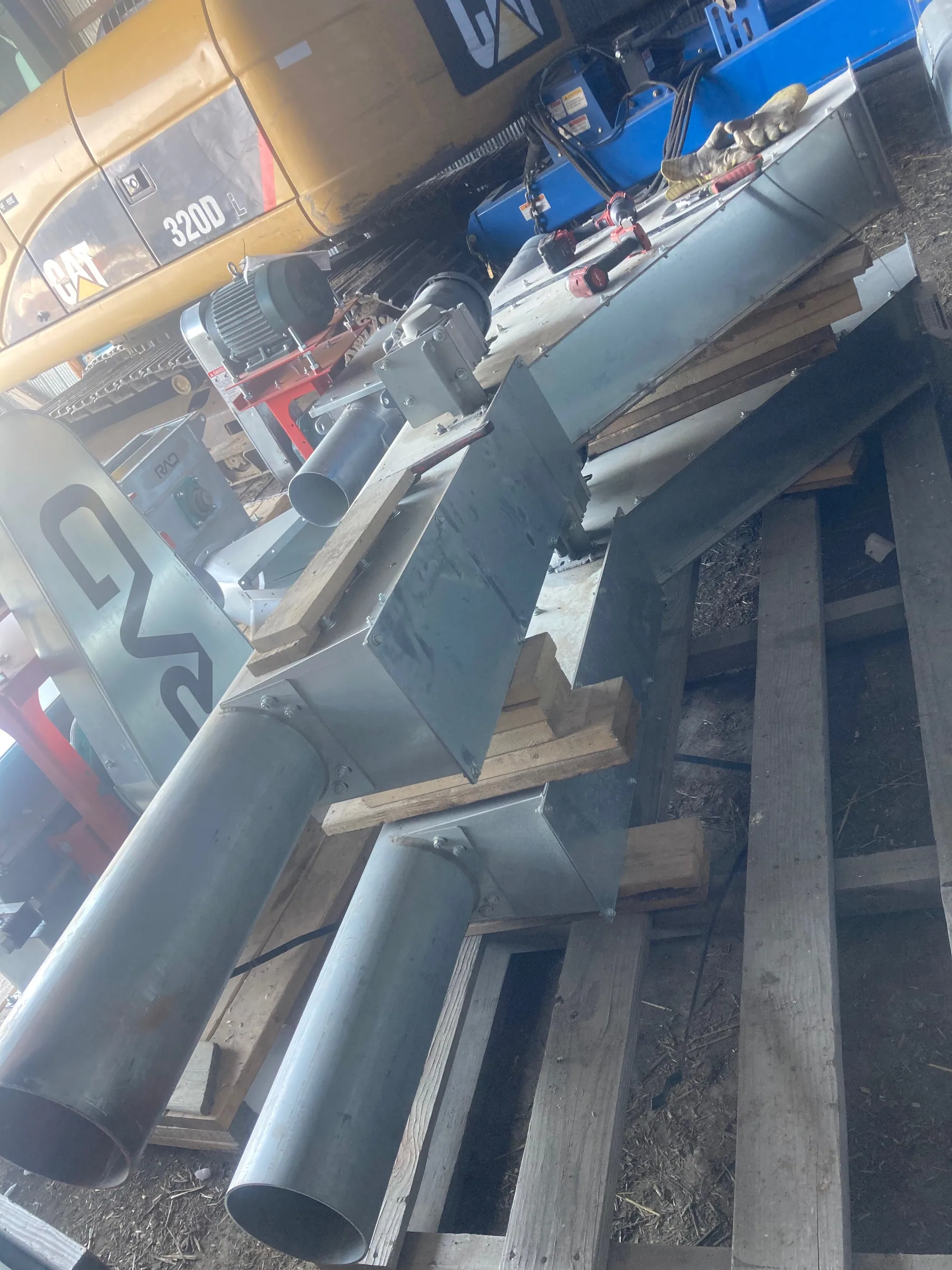

Fabricated grain-handling transitions — 02Fabricated grain-handling transitions

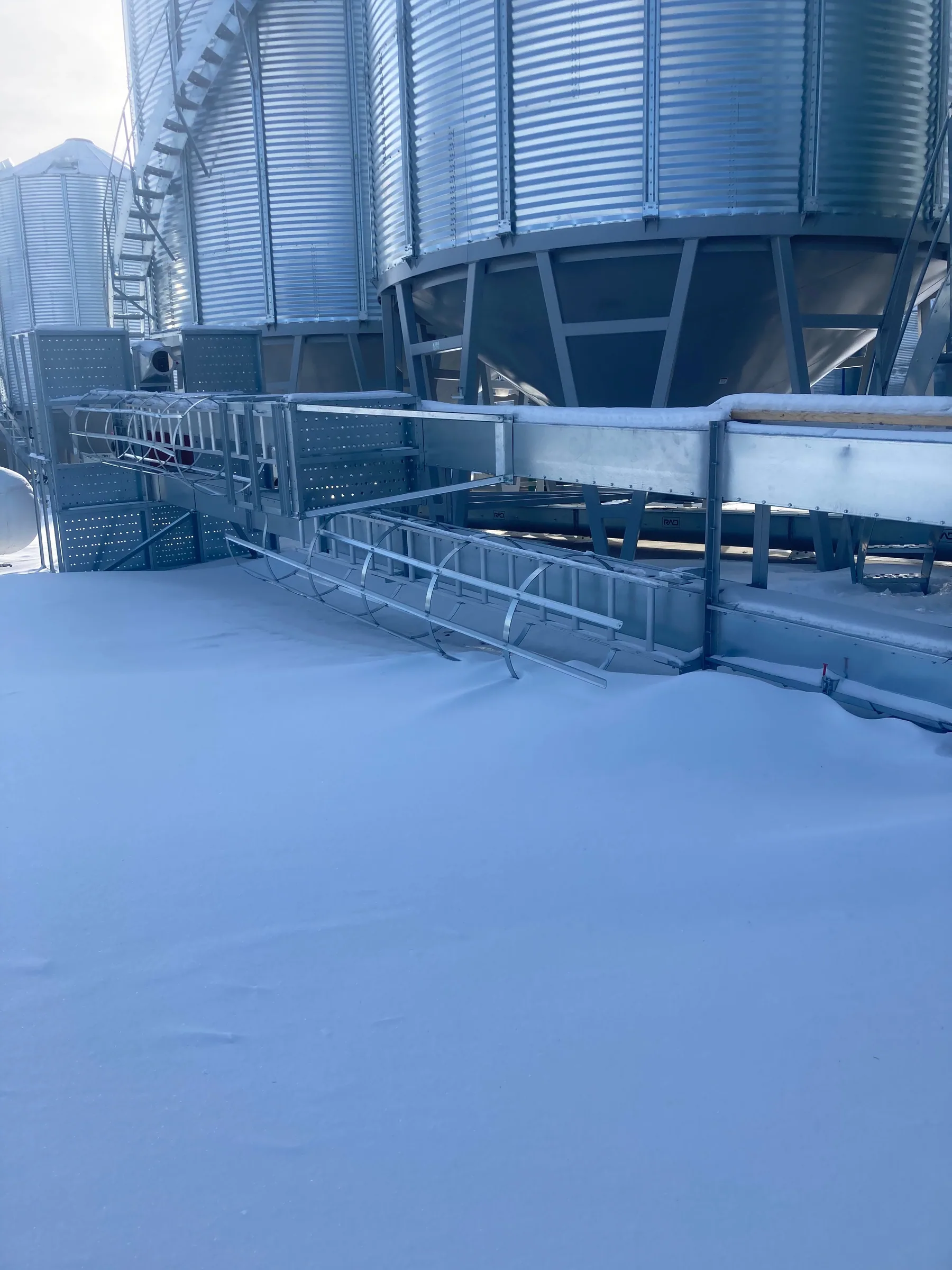

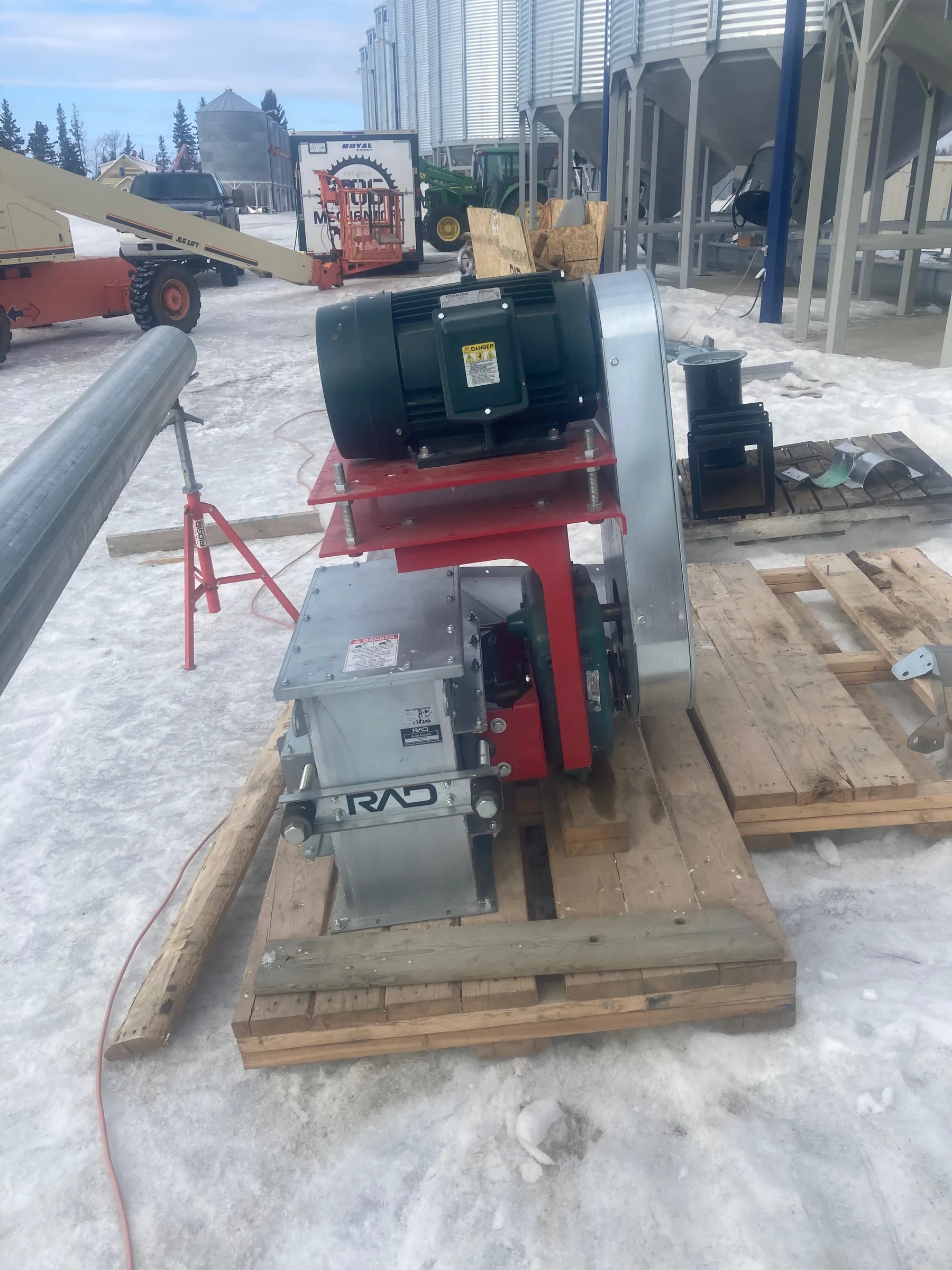

Conveying equipment prepared alongside the bins — 03Conveying equipment prepared alongside the bins

Conveying equipment prepared alongside the bins — 04Conveying equipment prepared alongside the bins

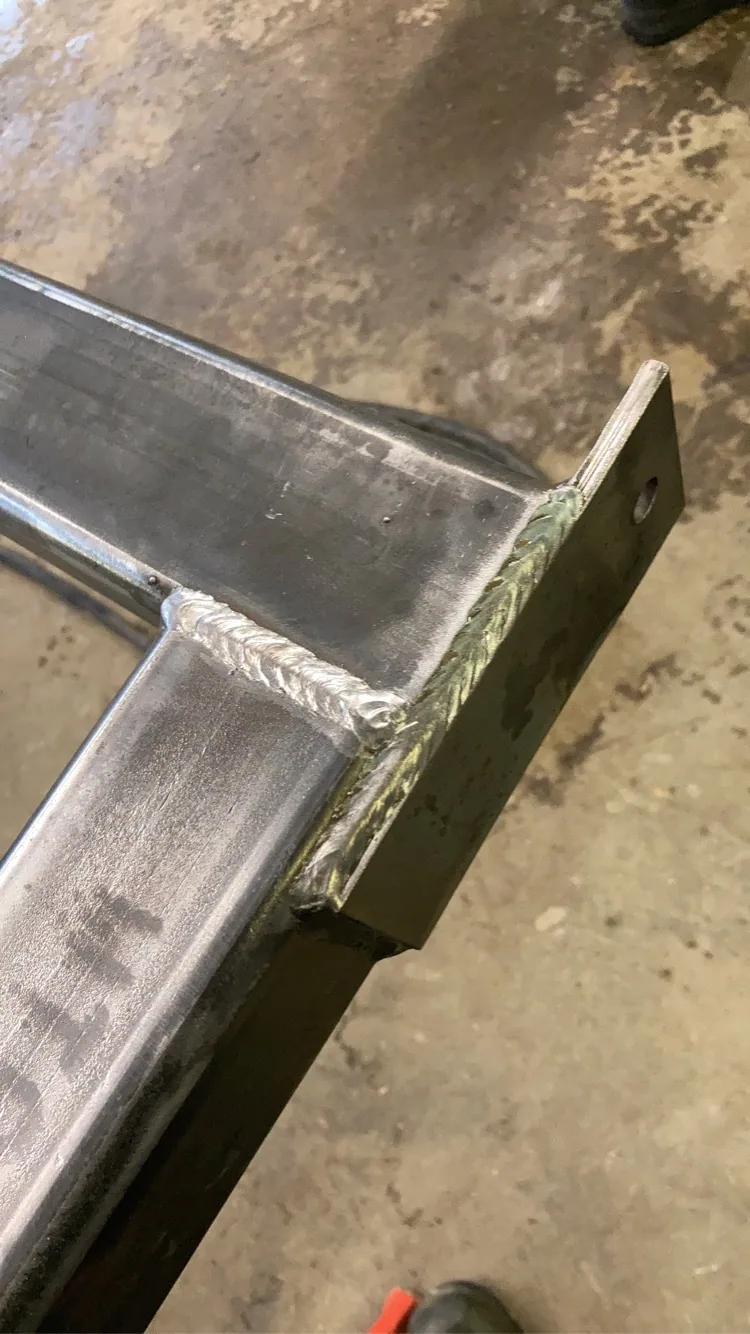

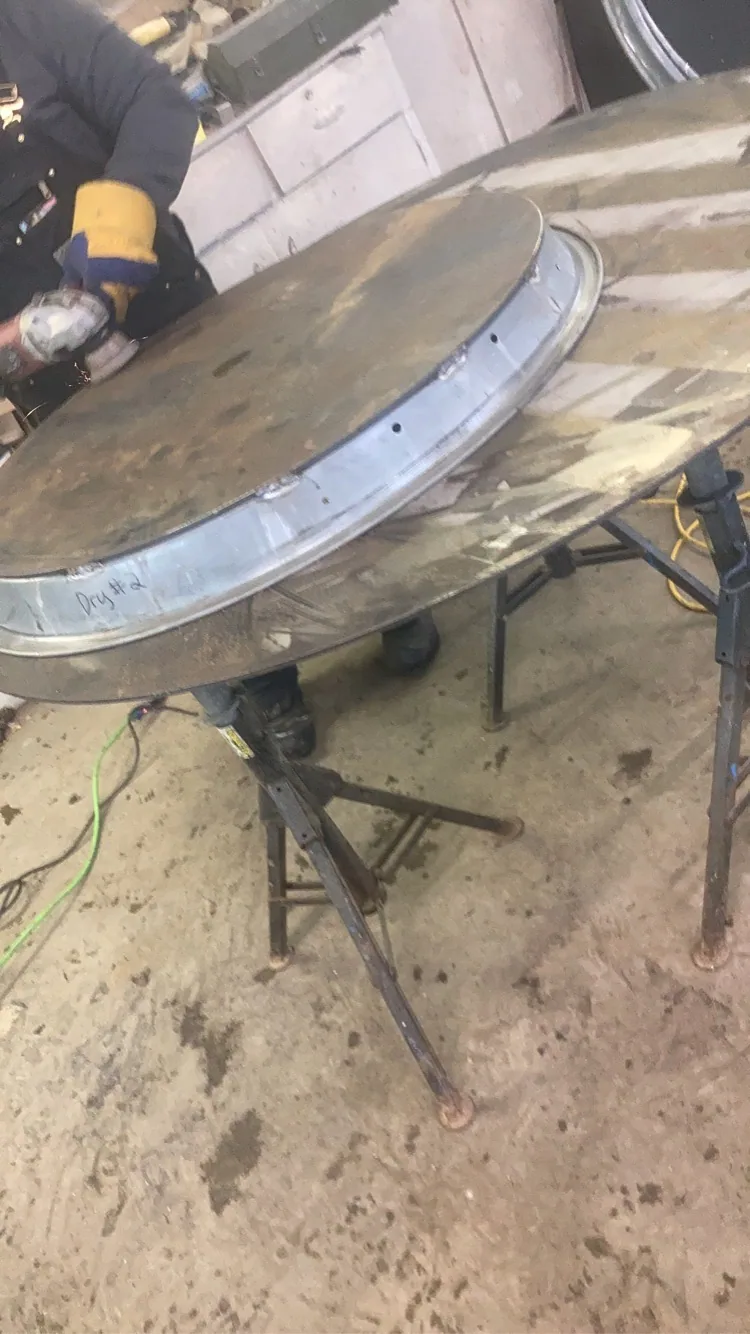

Custom steel connections and transition fabrication — 05Custom steel connections and transition fabrication

Custom steel connections and transition fabrication — 06Custom steel connections and transition fabrication

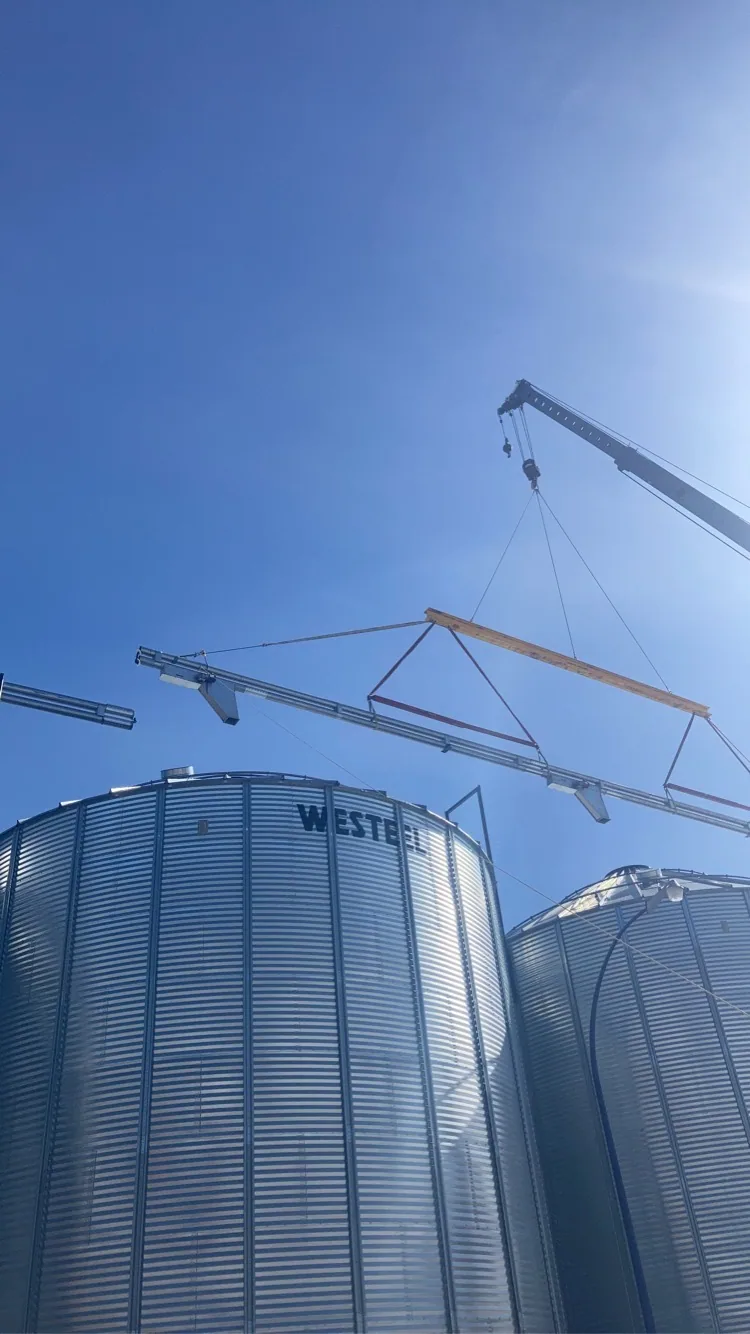

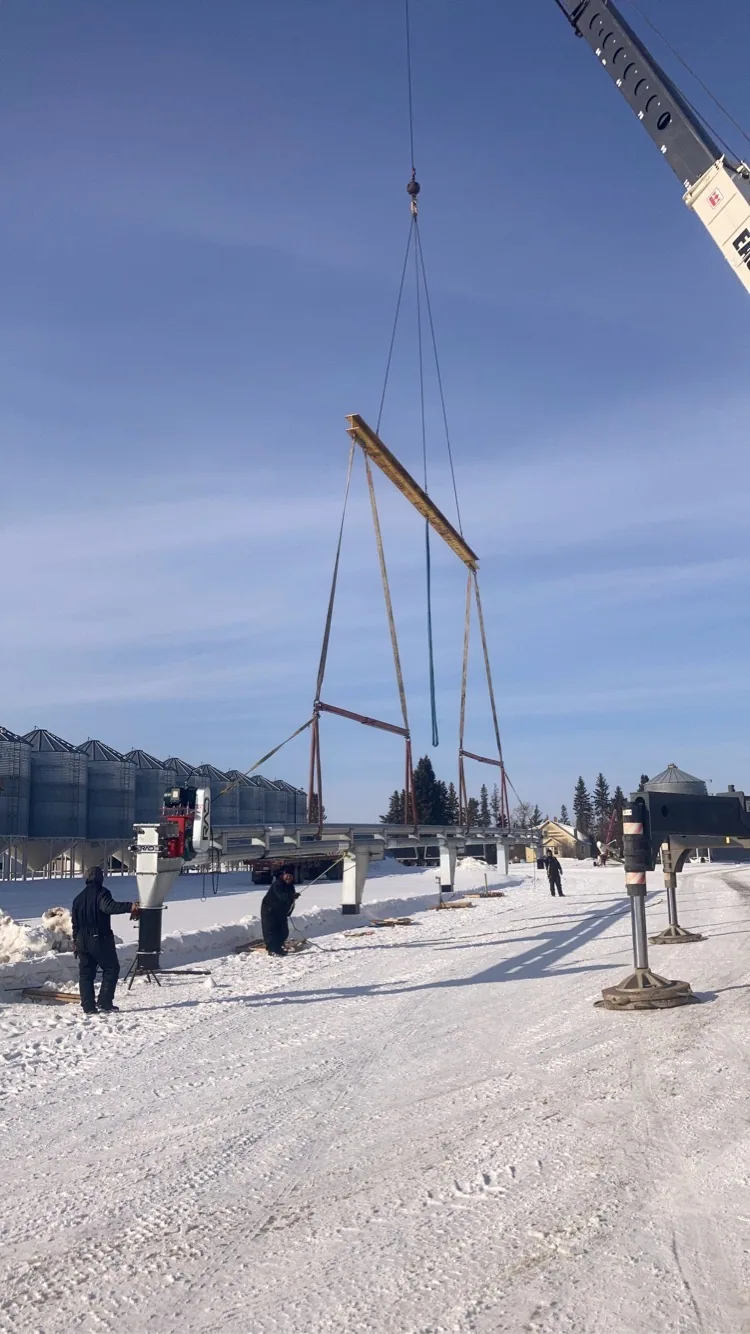

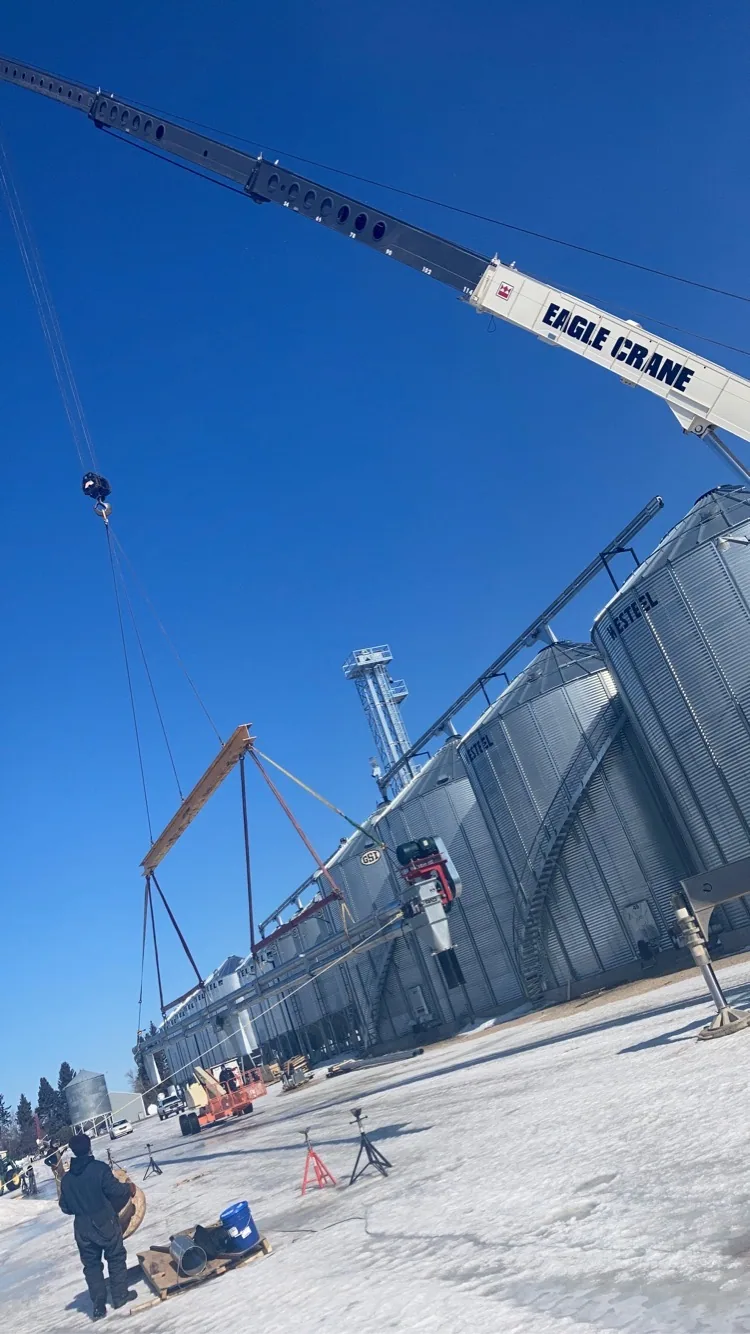

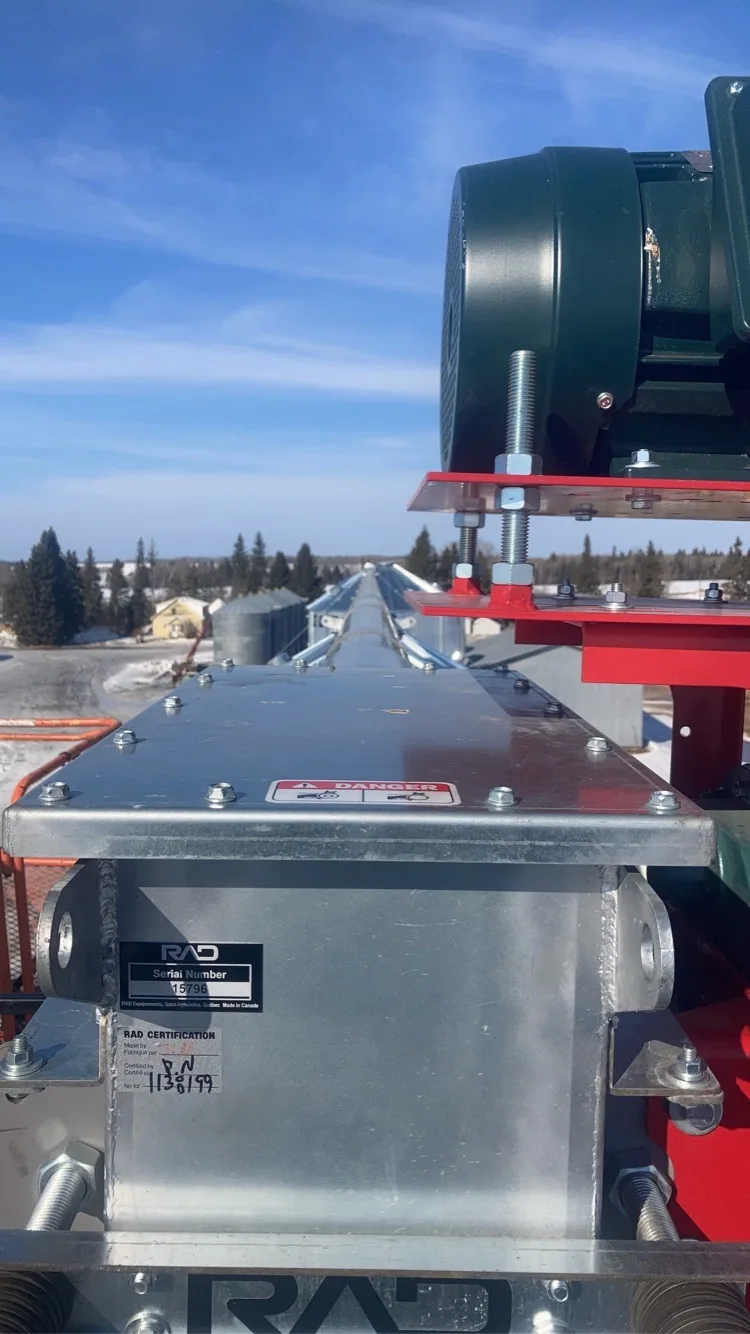

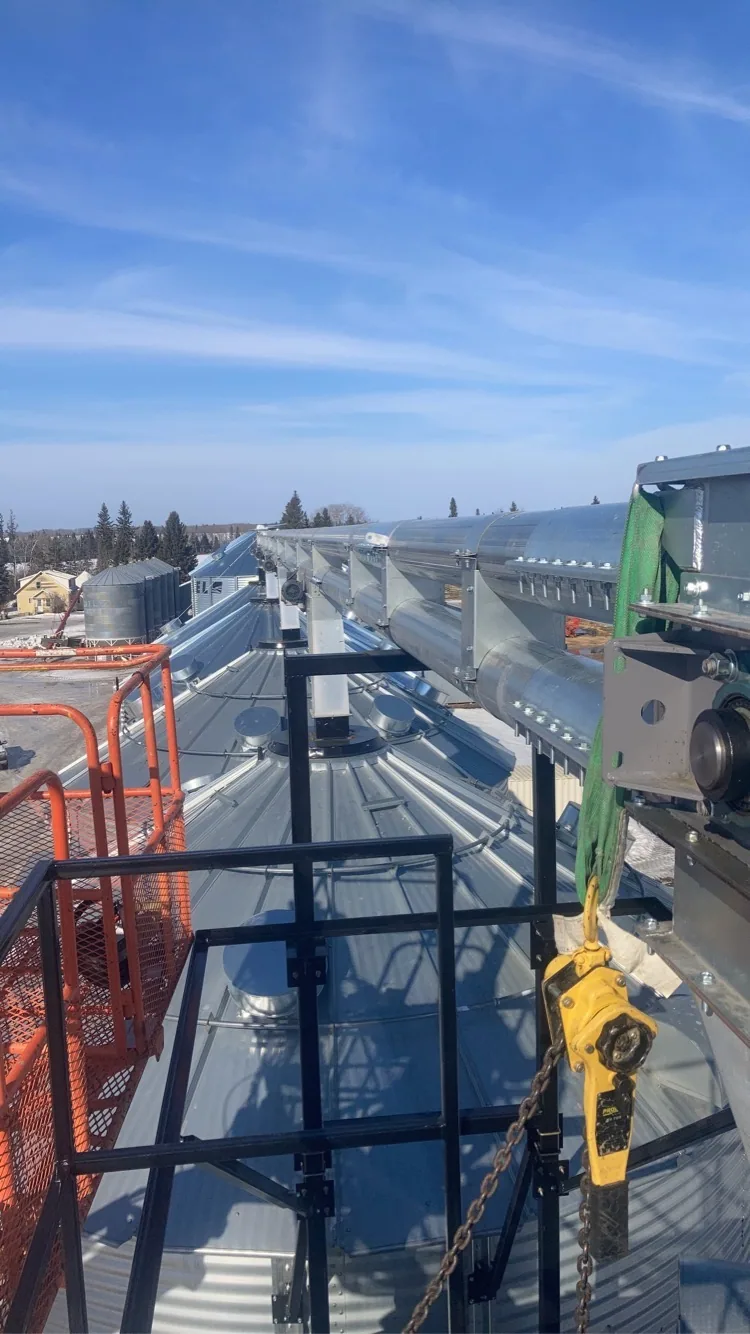

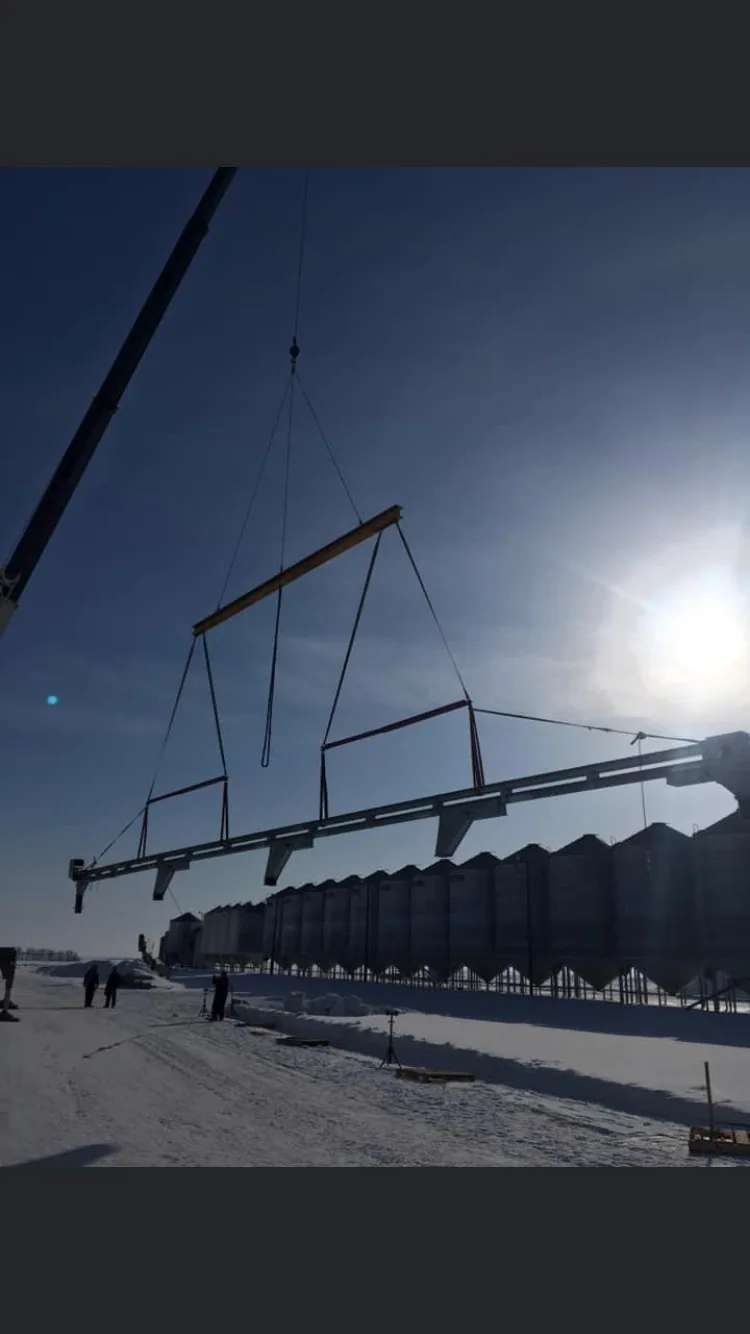

Lifting and positioning overhead conveyor sections — 07Lifting and positioning overhead conveyor sections

Lifting and positioning overhead conveyor sections — 08Lifting and positioning overhead conveyor sections

Lifting and positioning overhead conveyor sections — 09Lifting and positioning overhead conveyor sections

Lifting and positioning overhead conveyor sections — 10Lifting and positioning overhead conveyor sections

Lifting and positioning overhead conveyor sections — 11Lifting and positioning overhead conveyor sections

Lifting and positioning overhead conveyor sections — 12Lifting and positioning overhead conveyor sections

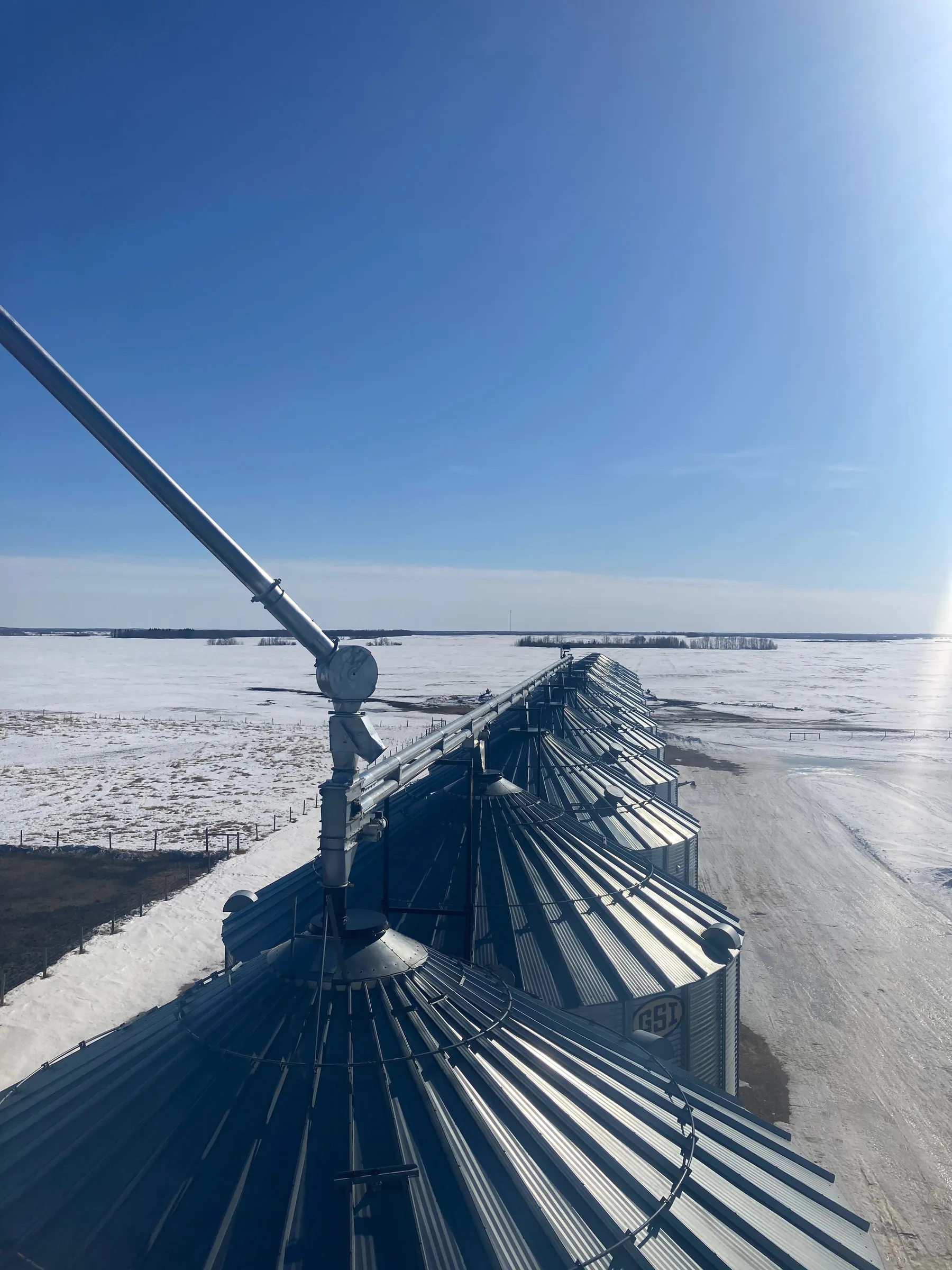

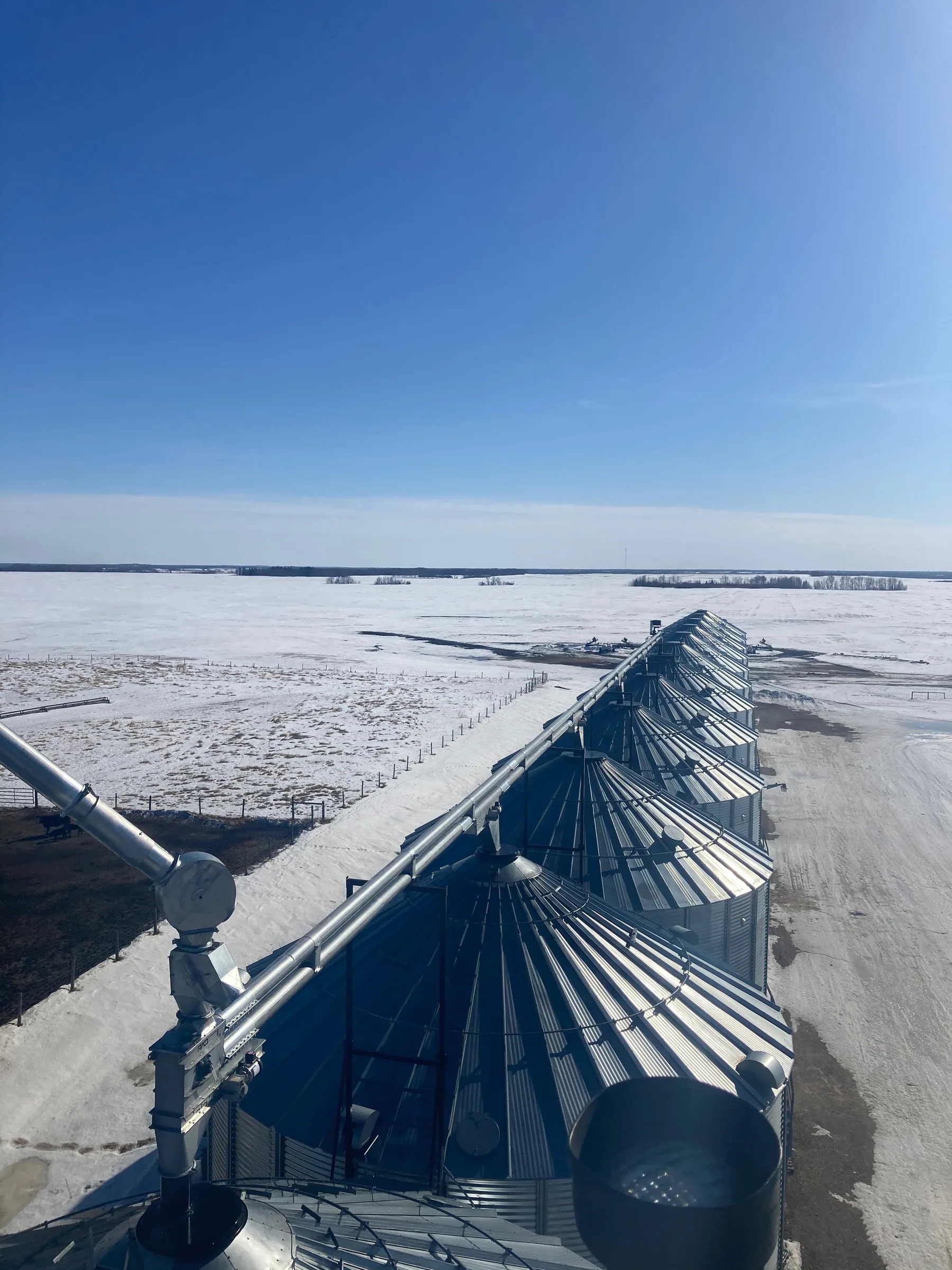

Long double-run conveyor aligned above the storage bins — 13Long double-run conveyor aligned above the storage bins

Long double-run conveyor aligned above the storage bins — 14Long double-run conveyor aligned above the storage bins

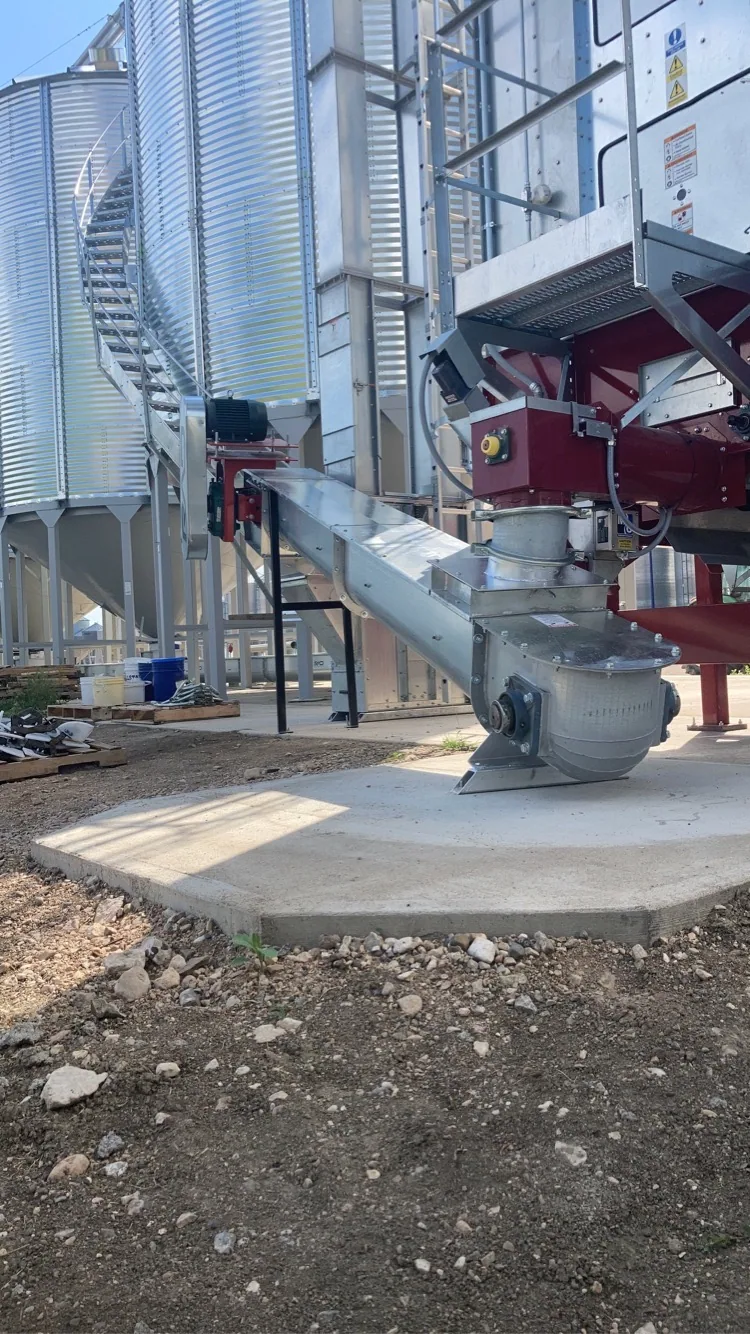

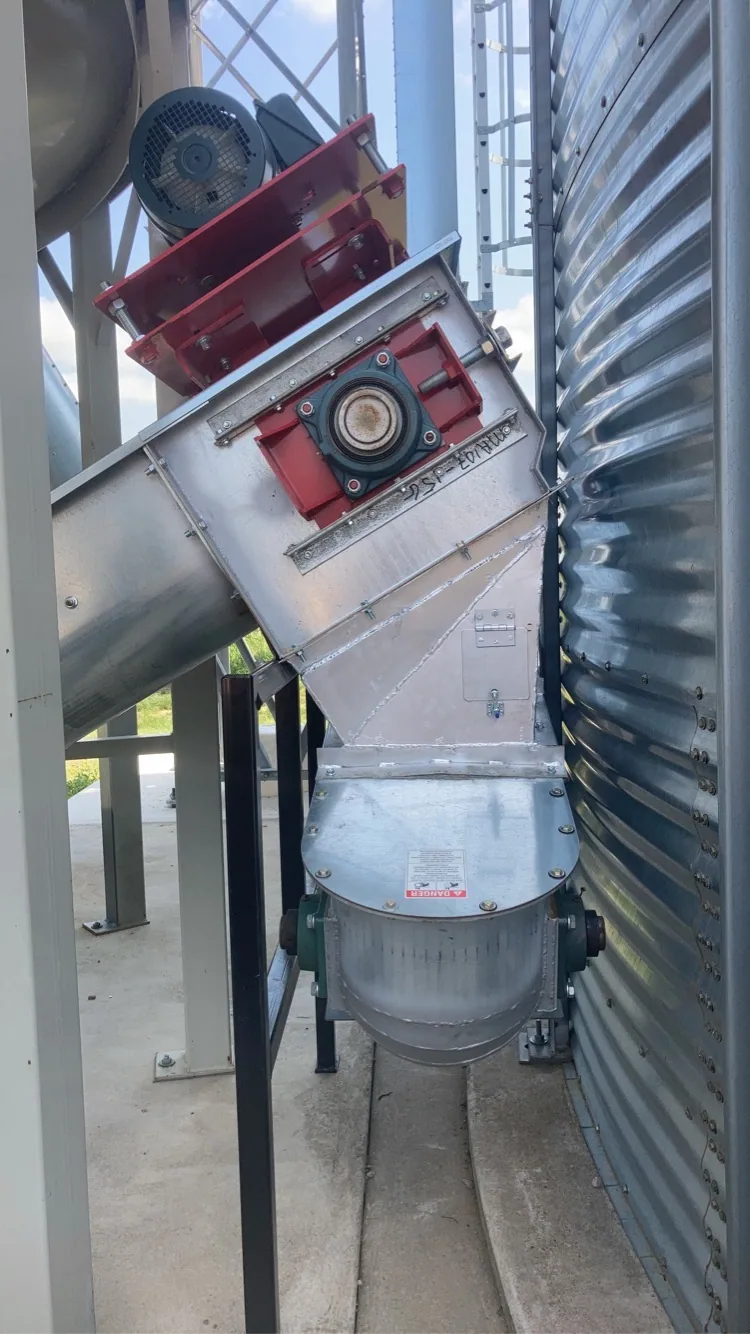

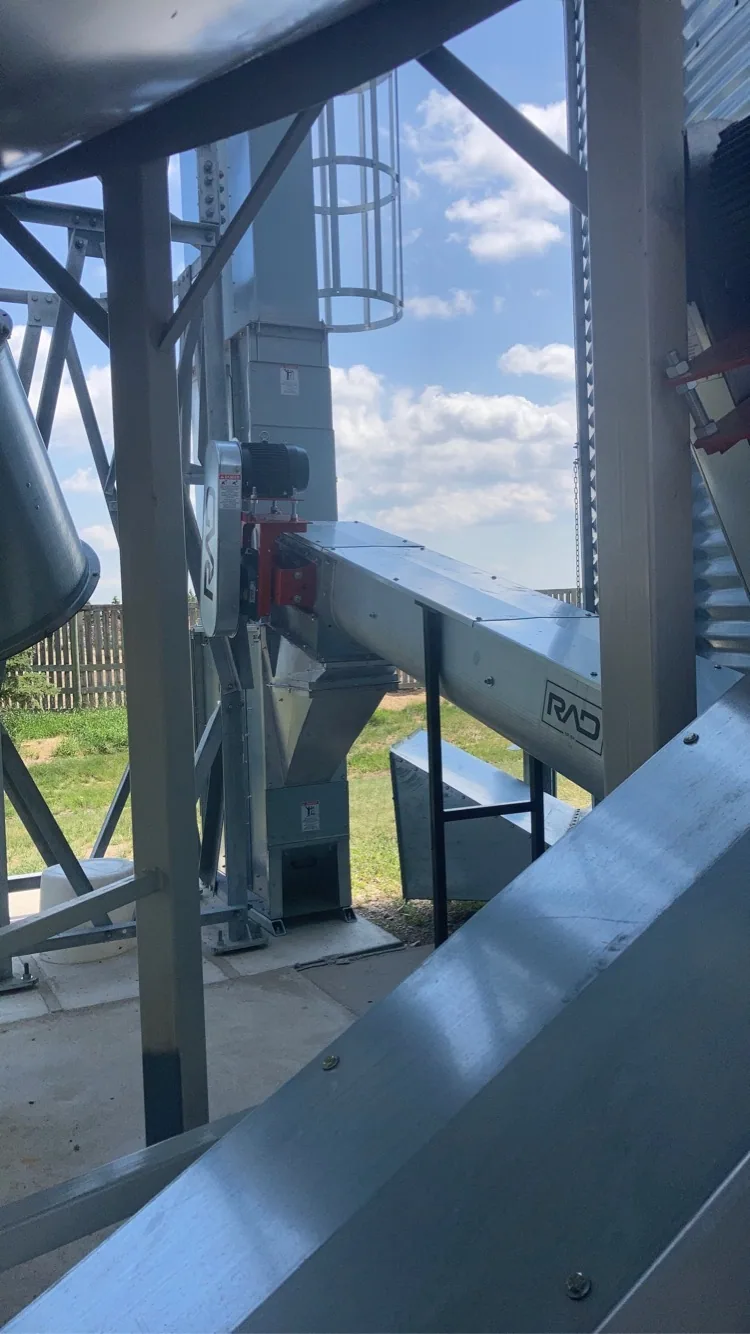

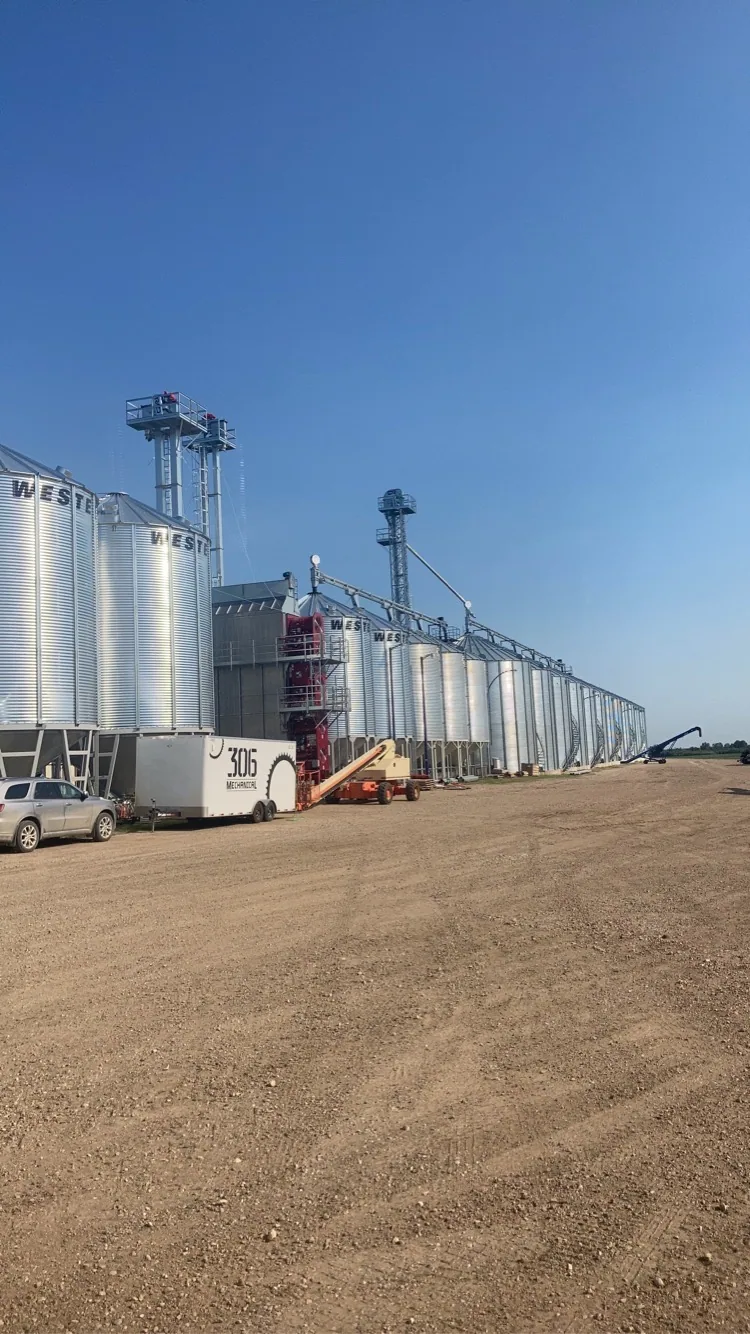

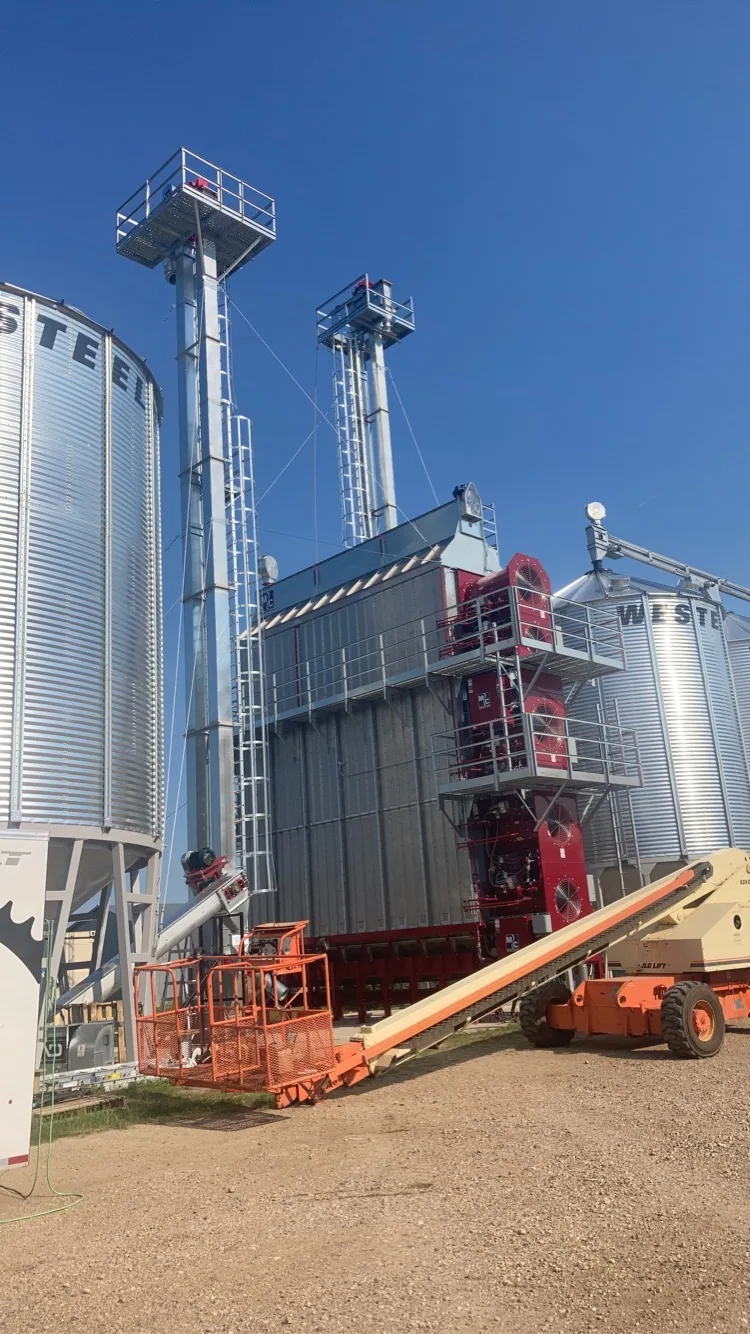

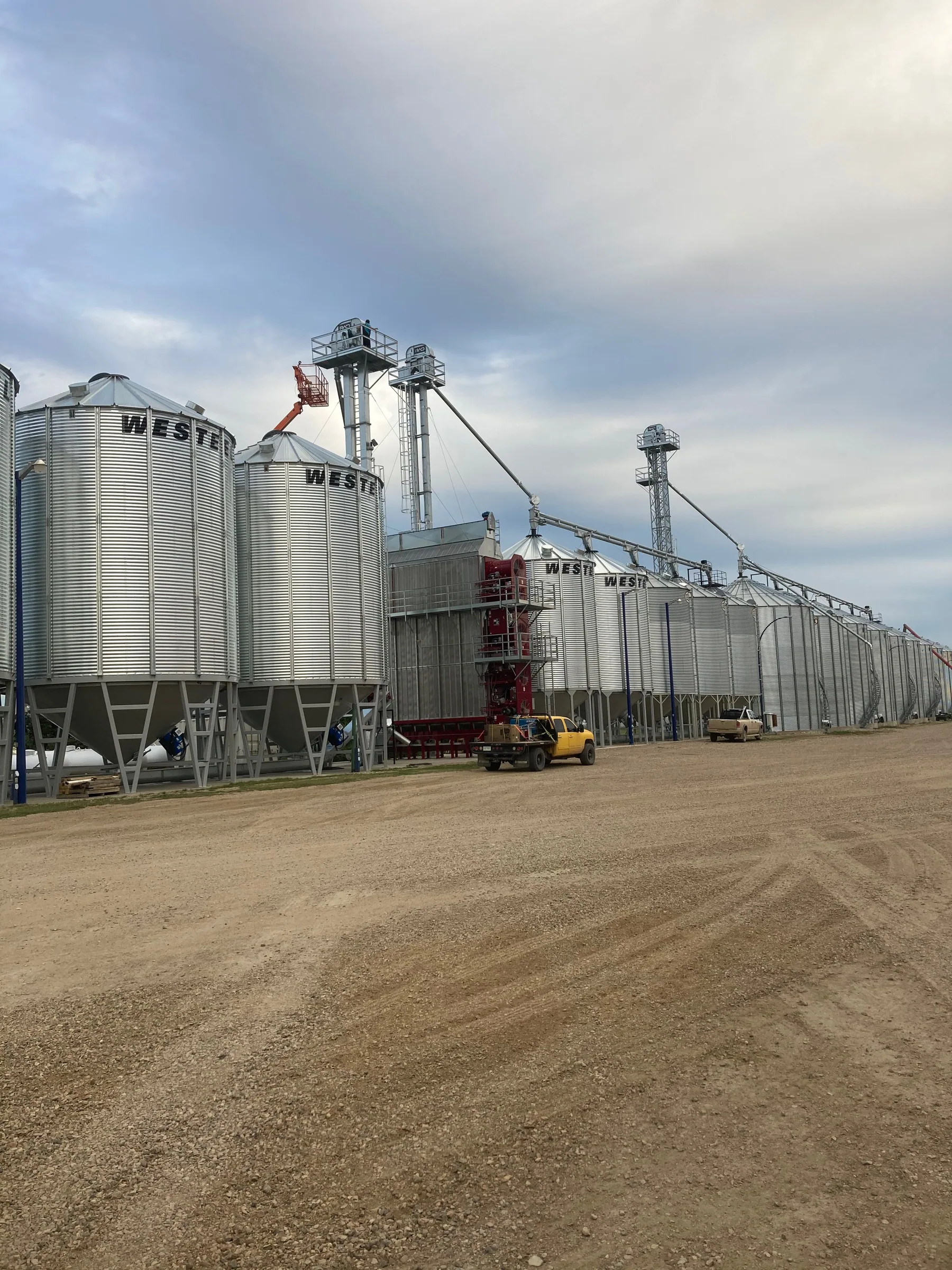

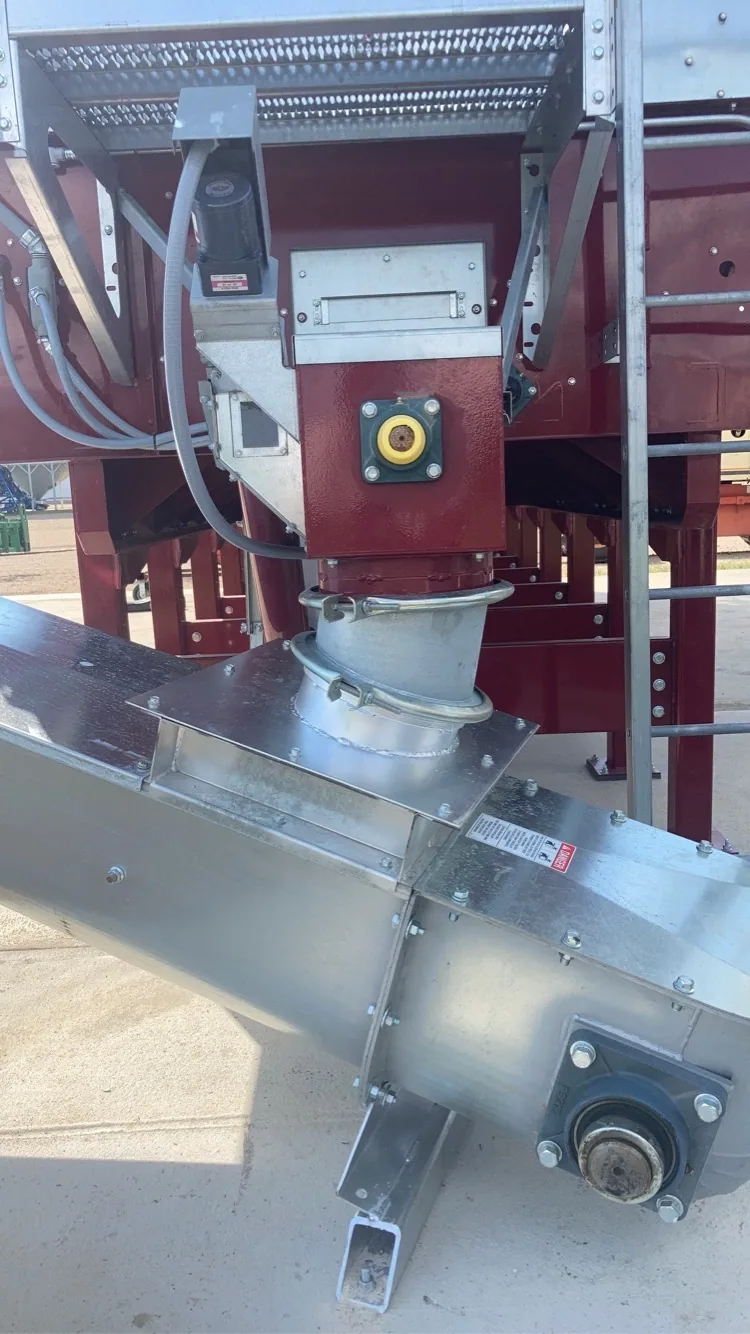

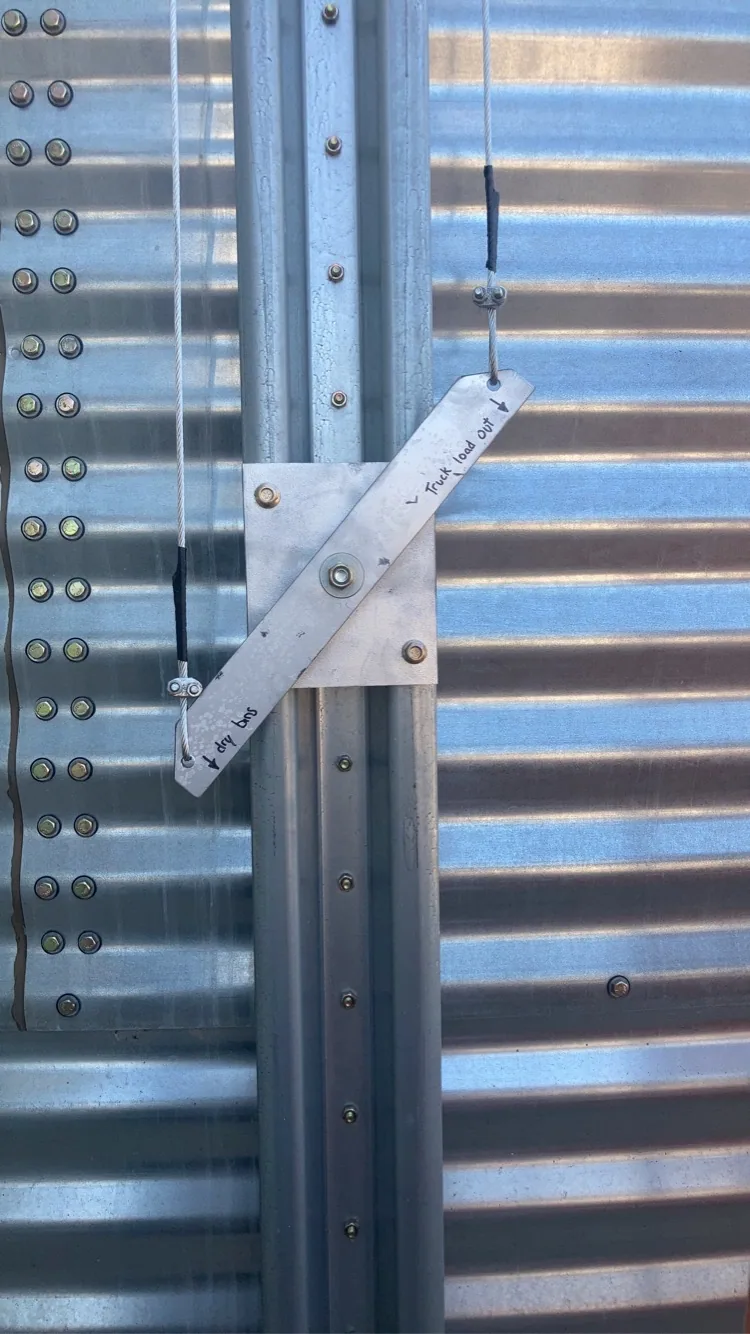

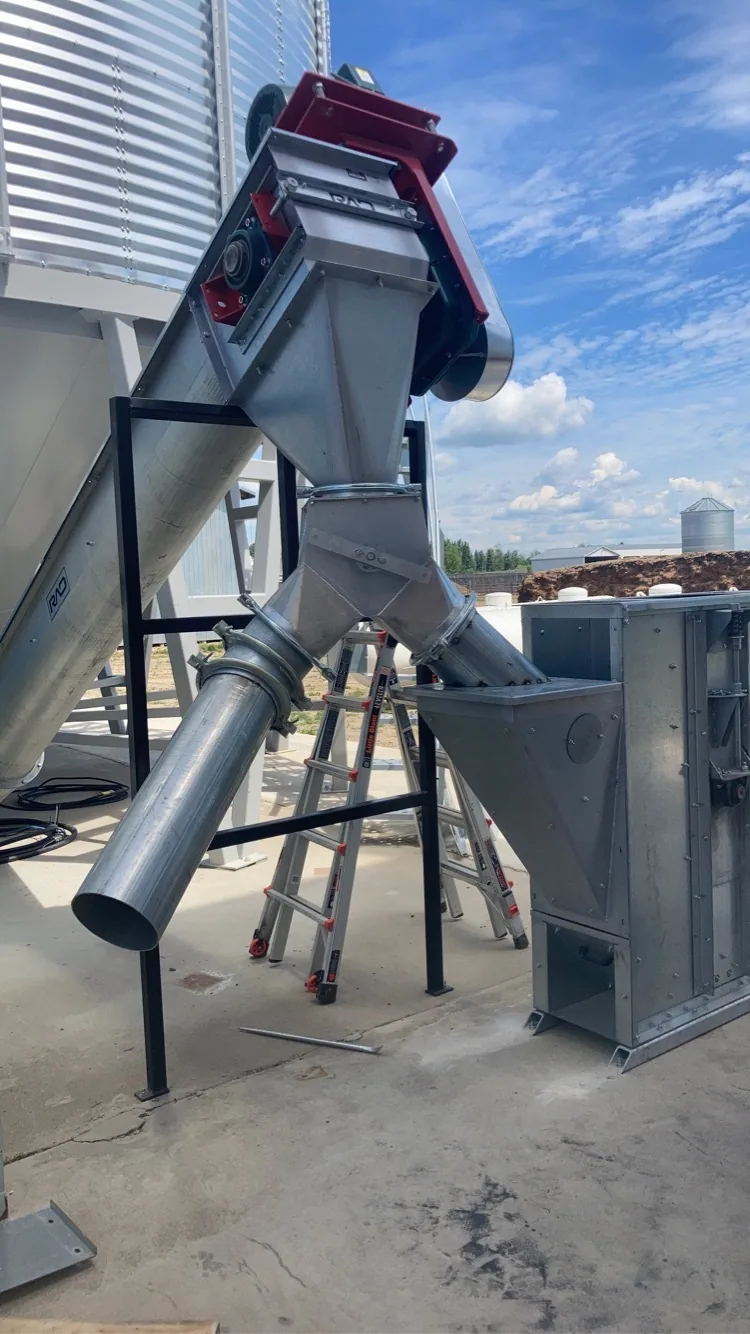

Dryer-feed elevator and conveying connections — 15Dryer-feed elevator and conveying connections
