Central Butte area / Upgrades & repairs

Wooden leg. Steel replacement.

A steel bucket elevator, raised roof and overhead conveying for an existing wooden elevator.

Explore 22 photos

Steel replacement leg above the raised elevator roof

The work.

Replacing a wooden grain leg meant working through the existing building, not simply standing a new leg beside it. The work included removing the old roof, wooden leg and distributor-platform floor, then fitting a new boot and steel elevator. The roof was raised approximately 10 feet, with the new leg extending above it to serve three exterior bins.

Richard’s project experience from 2019, before establishing 306 Mechanical.

01 / THE DETAILS

Working within the building

The old distributor floor and wooden leg were removed to make room for the replacement equipment.

02 / THE DETAILS

A new route for grain

The steel leg and overhead conveyor connected the existing elevator to three exterior bins.

03 / THE DETAILS

Roof and access

New walls raised the roof around the replacement leg, with exterior platforms providing equipment access.

The photo collection

Take a closer look.

Open any photo to enlarge it. Use the arrows to browse, or zoom in to inspect the details.

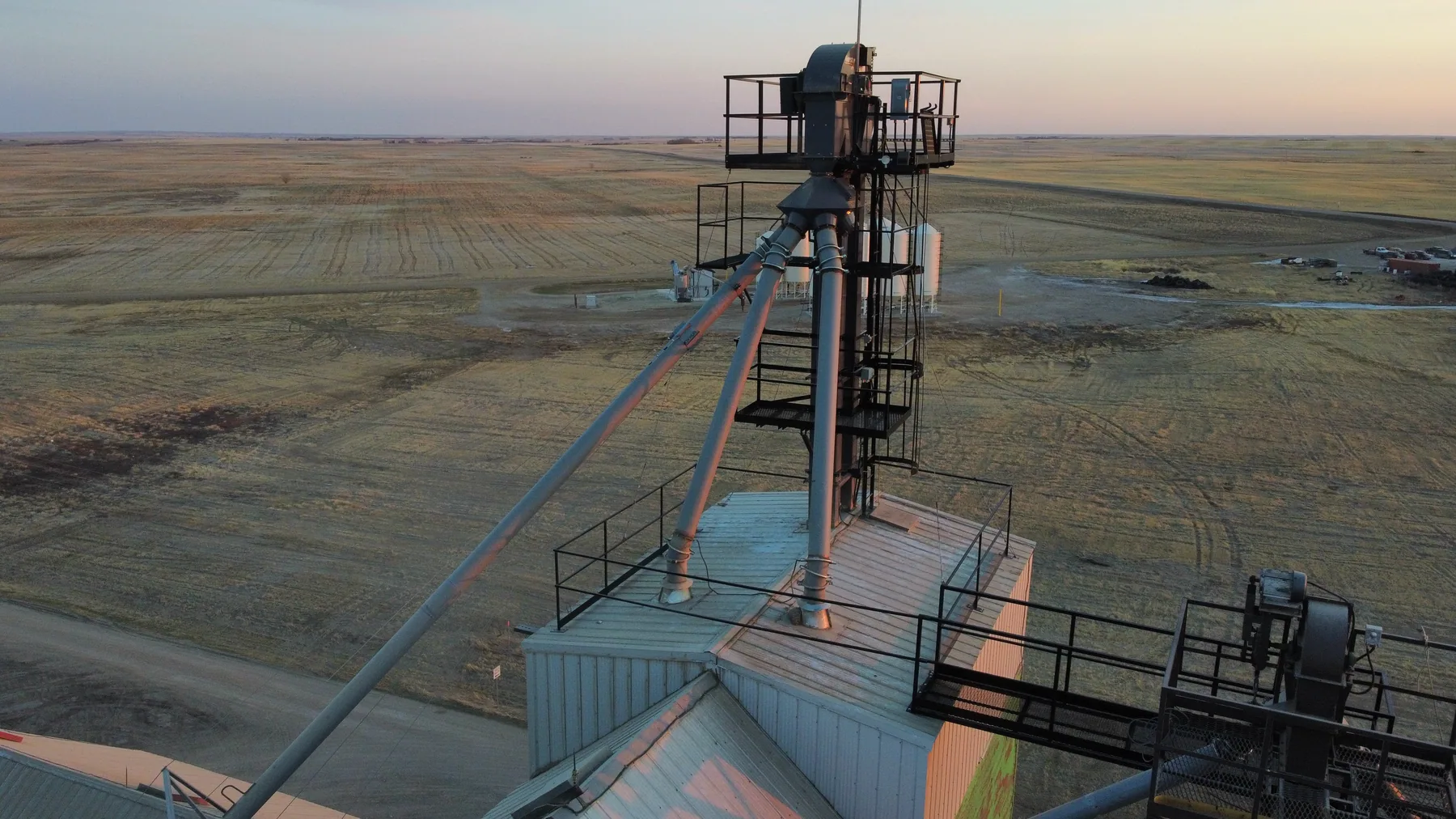

Steel replacement leg above the raised elevator roof — 01Steel replacement leg above the raised elevator roof

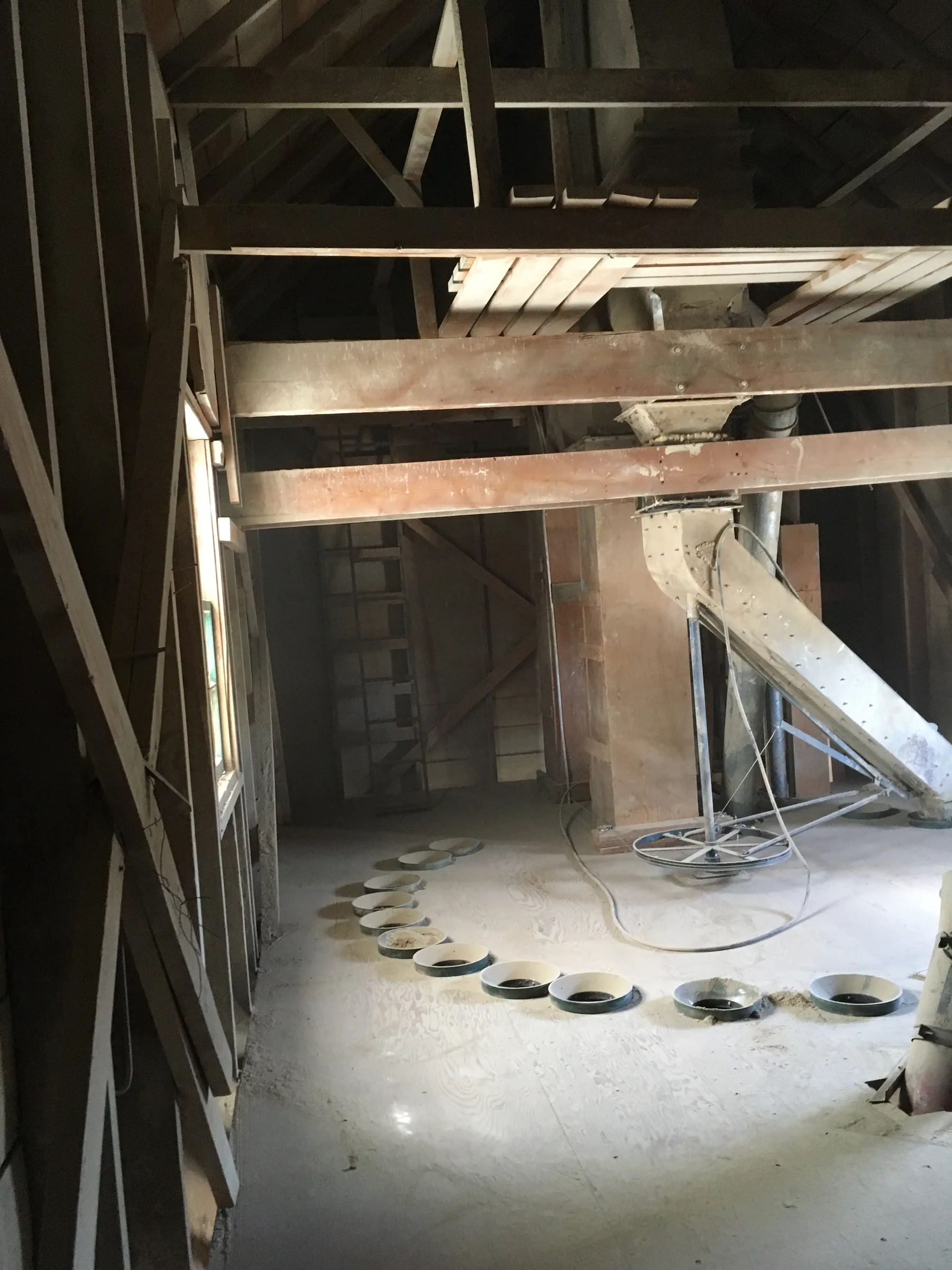

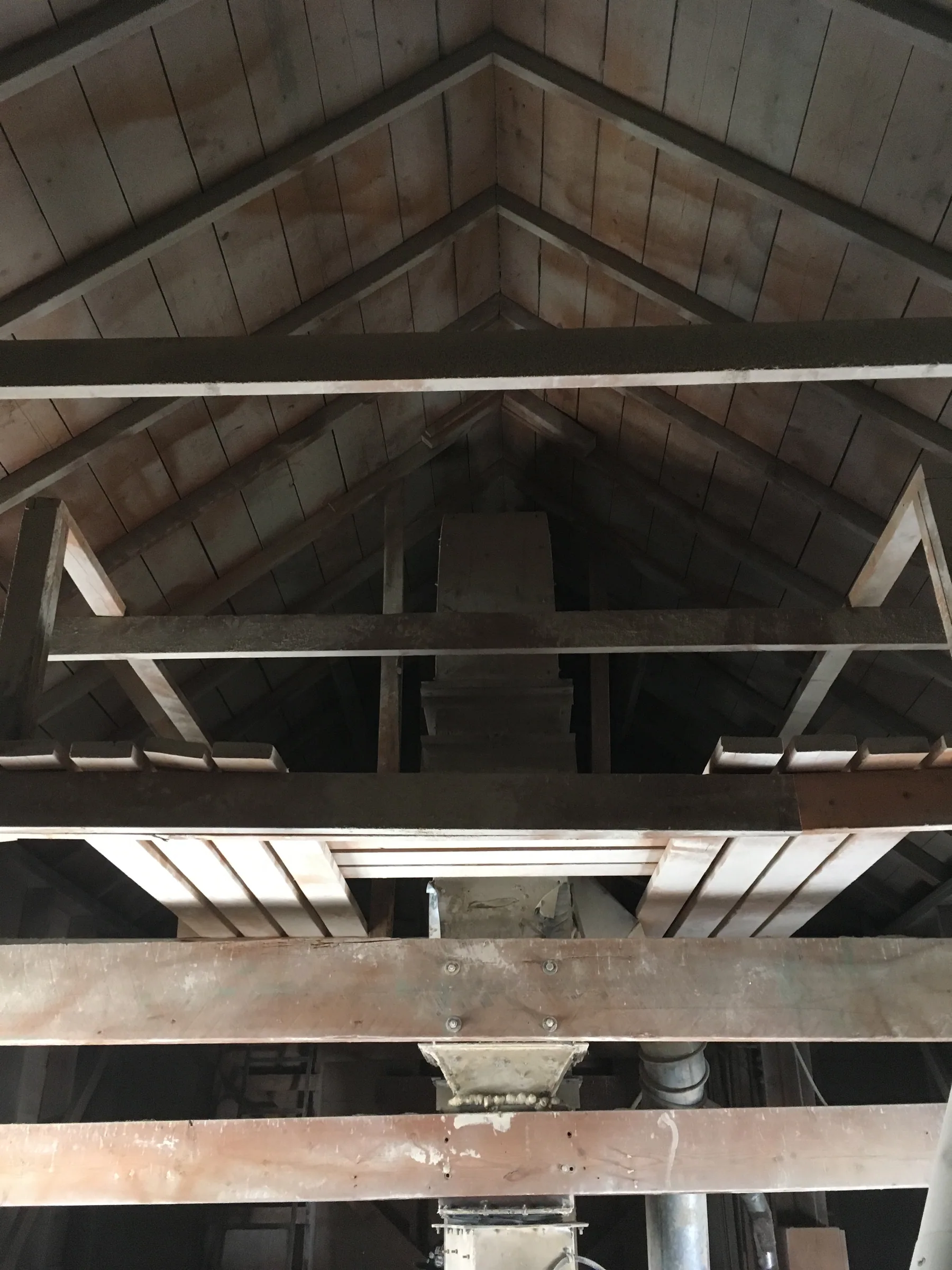

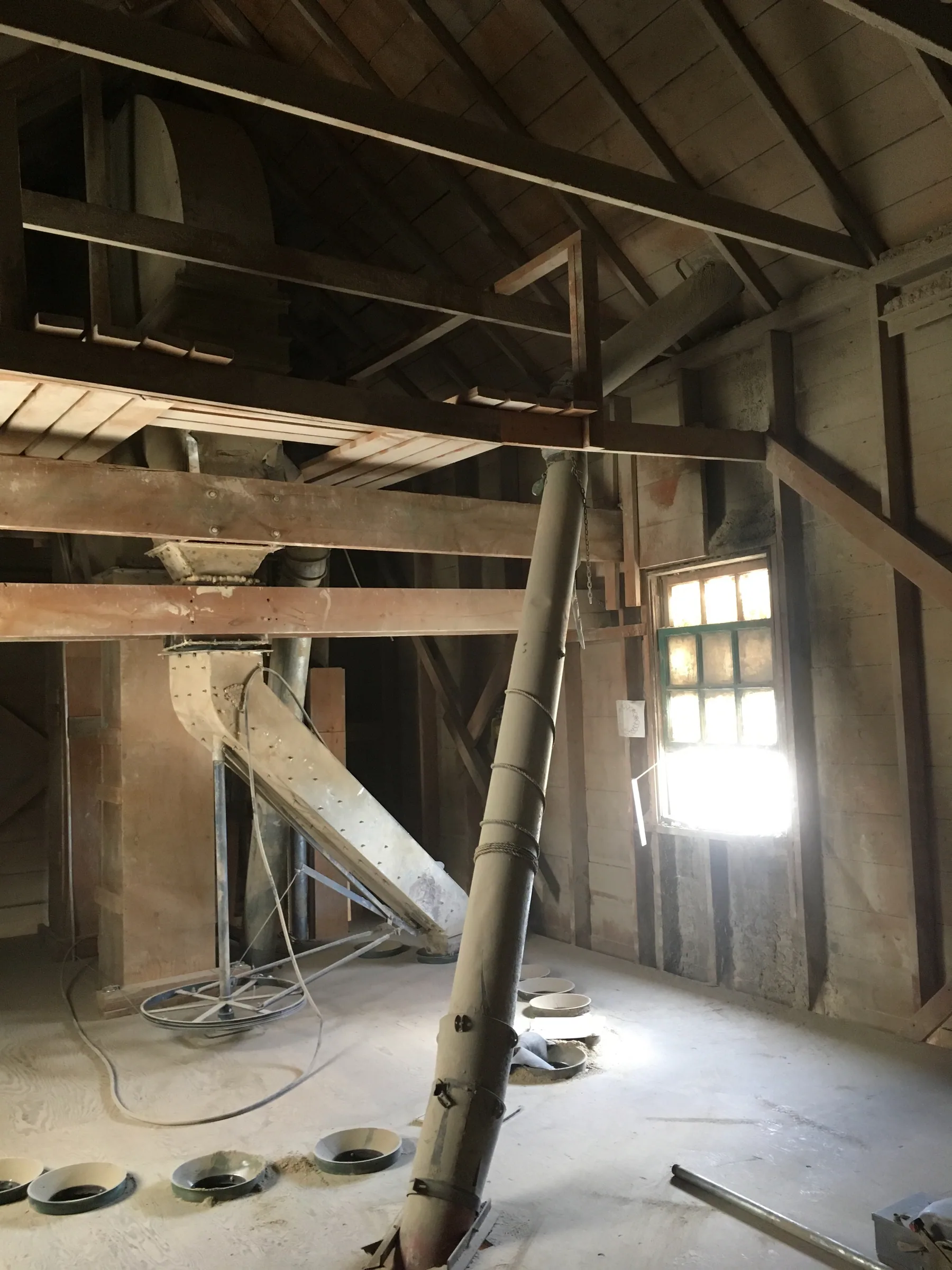

Original timber structure and distributor-platform area — 02Original timber structure and distributor-platform area

Original timber structure and distributor-platform area — 03Original timber structure and distributor-platform area

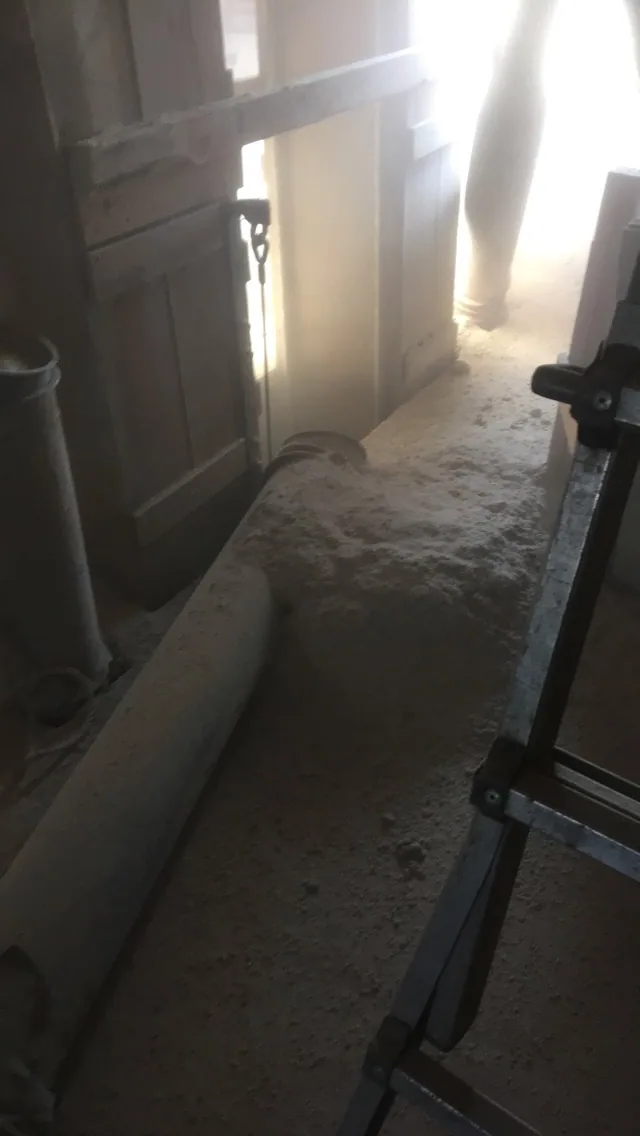

Original timber structure and distributor-platform area — 04Original timber structure and distributor-platform area

Original timber structure and distributor-platform area — 05Original timber structure and distributor-platform area

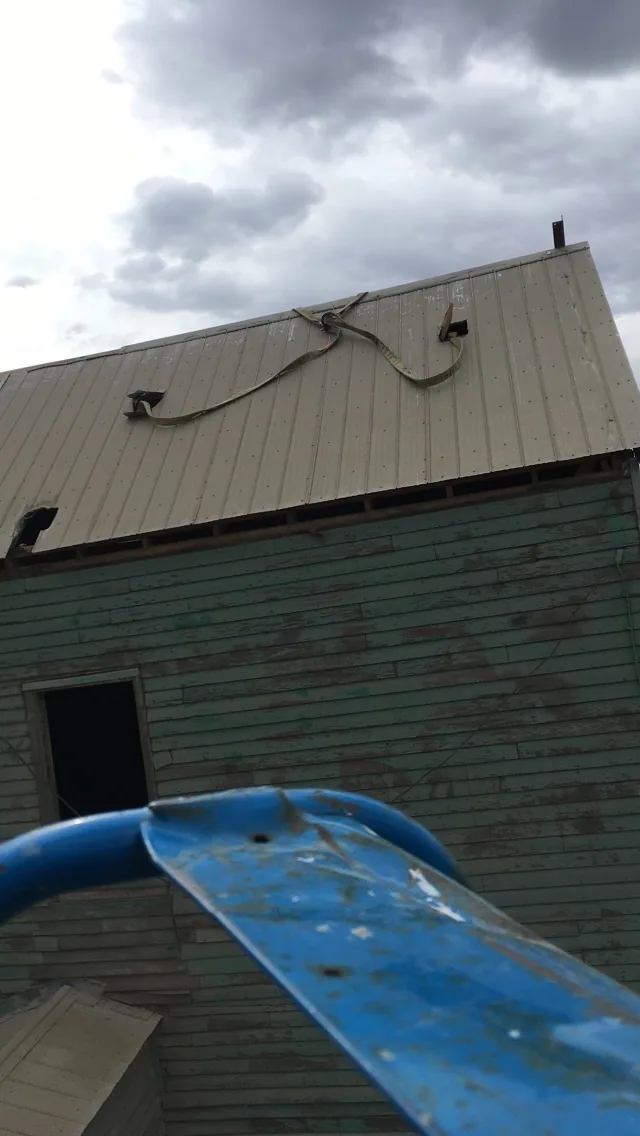

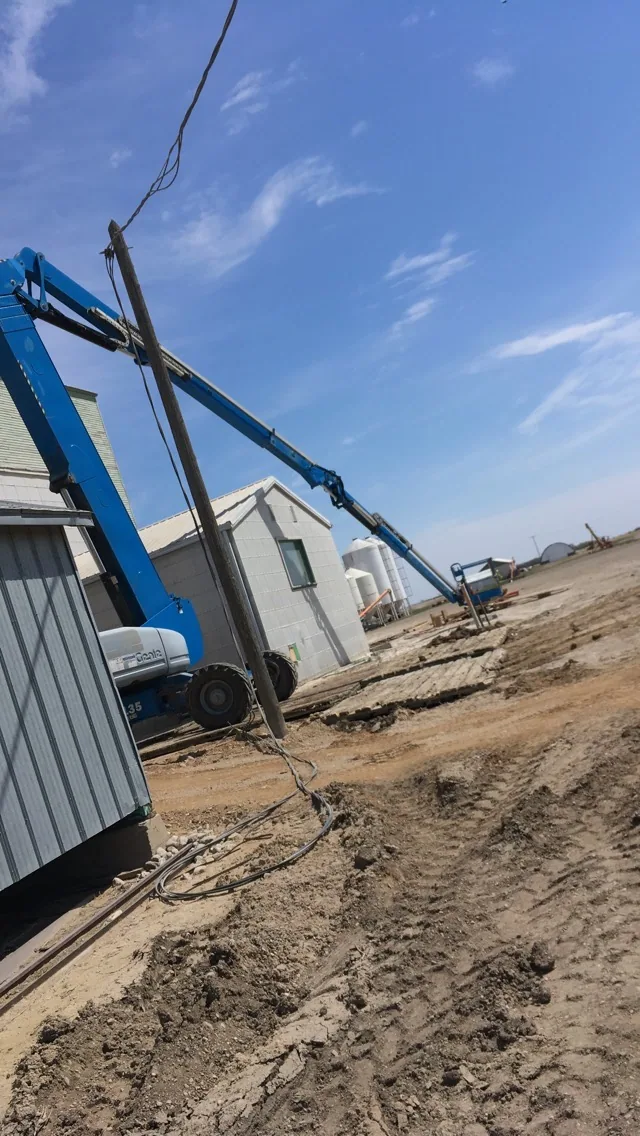

Roof and wooden leg removal work — 06Roof and wooden leg removal work

Roof and wooden leg removal work — 07Roof and wooden leg removal work

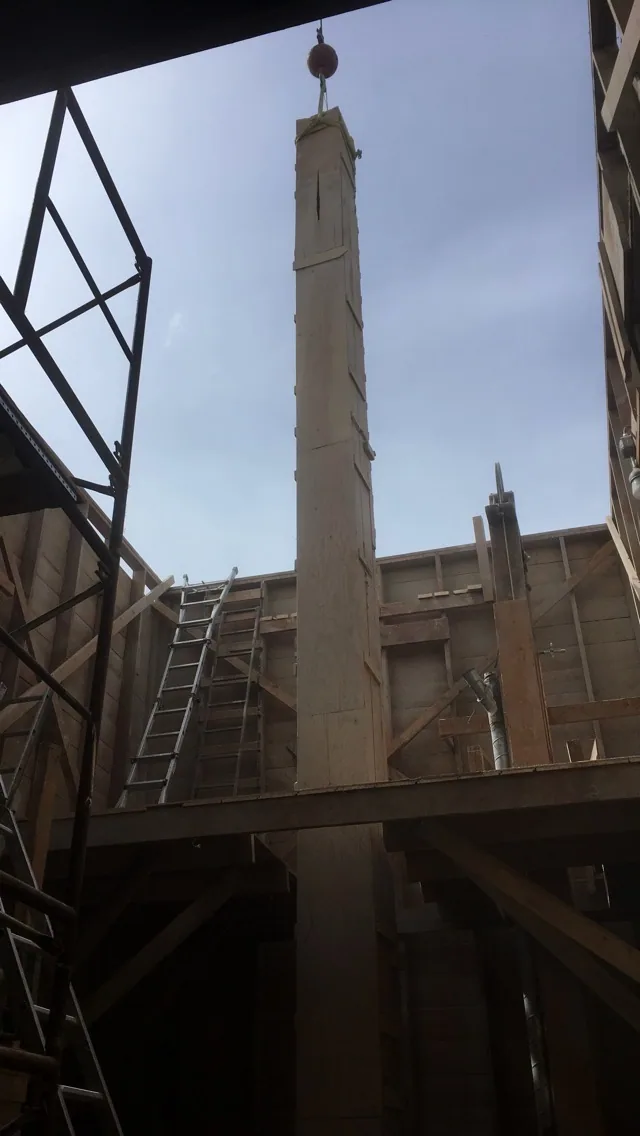

Roof and wooden leg removal work — 08Roof and wooden leg removal work

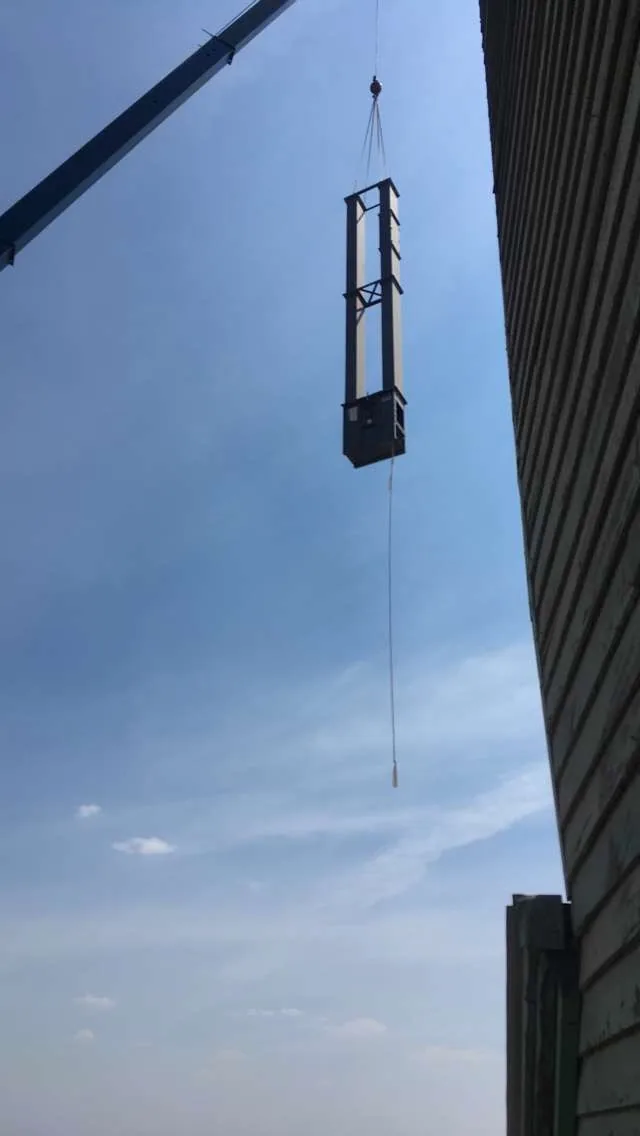

Steel elevator section being lifted — 09Steel elevator section being lifted

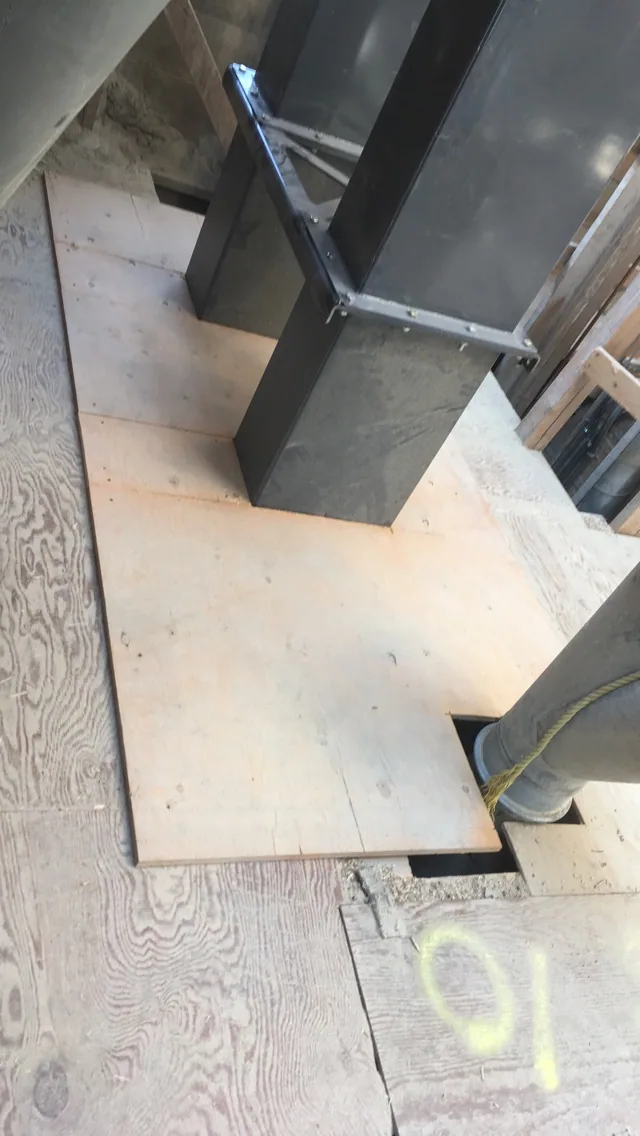

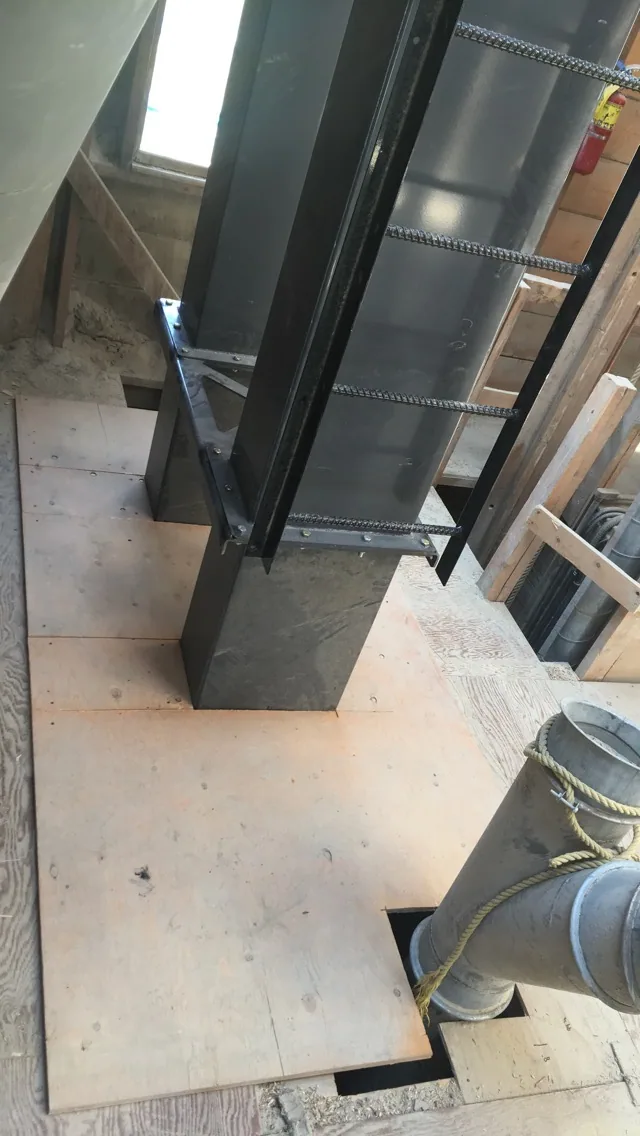

Replacement steel trunking through the floor opening — 10Replacement steel trunking through the floor opening

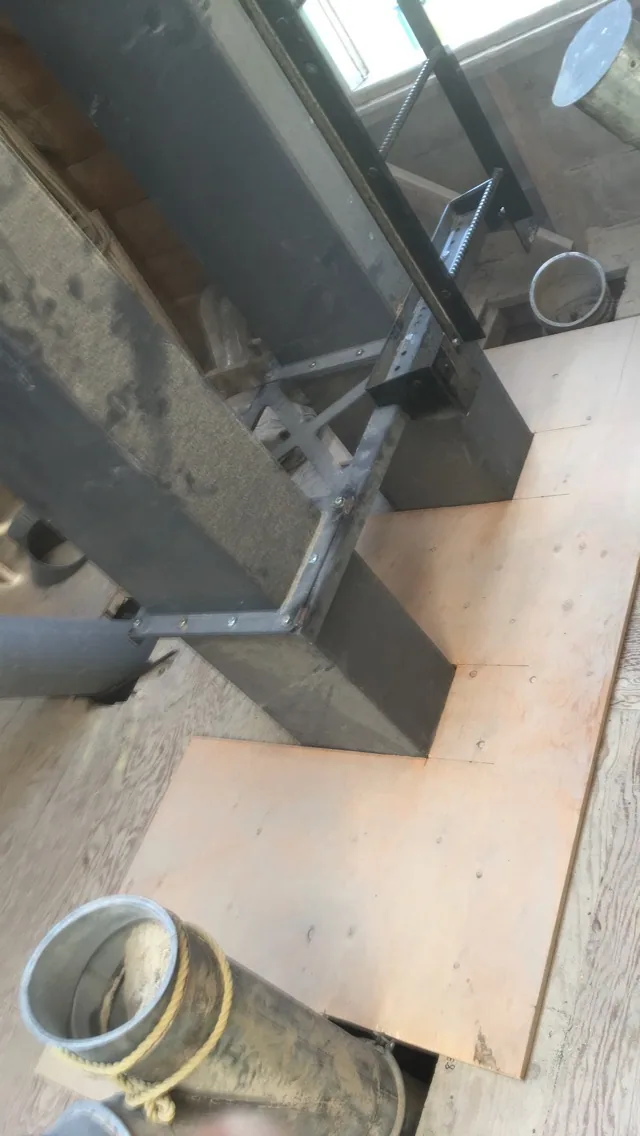

Replacement steel trunking through the floor opening — 11Replacement steel trunking through the floor opening

Replacement steel trunking through the floor opening — 12Replacement steel trunking through the floor opening

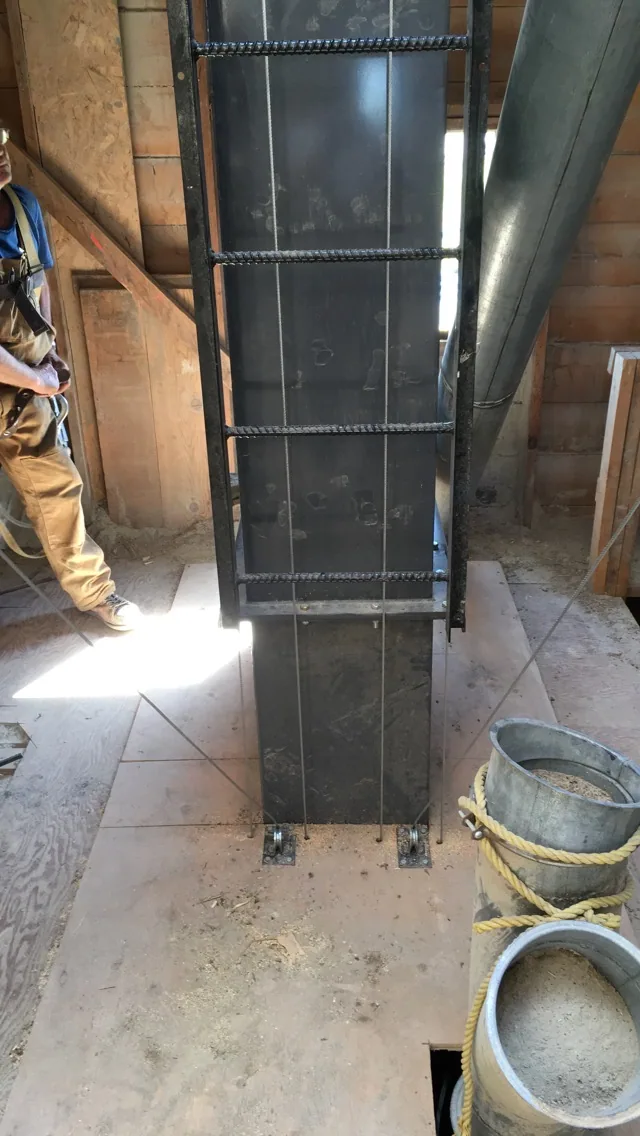

Steel grain leg fitted inside the existing building — 13Steel grain leg fitted inside the existing building

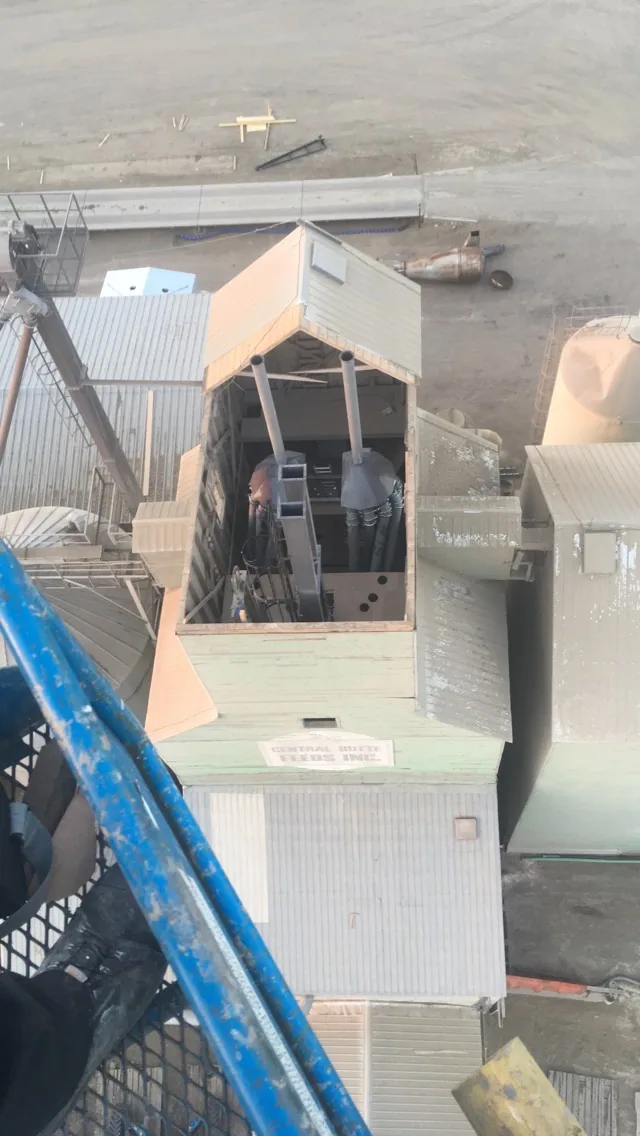

Steel grain leg fitted inside the existing building — 14Steel grain leg fitted inside the existing building

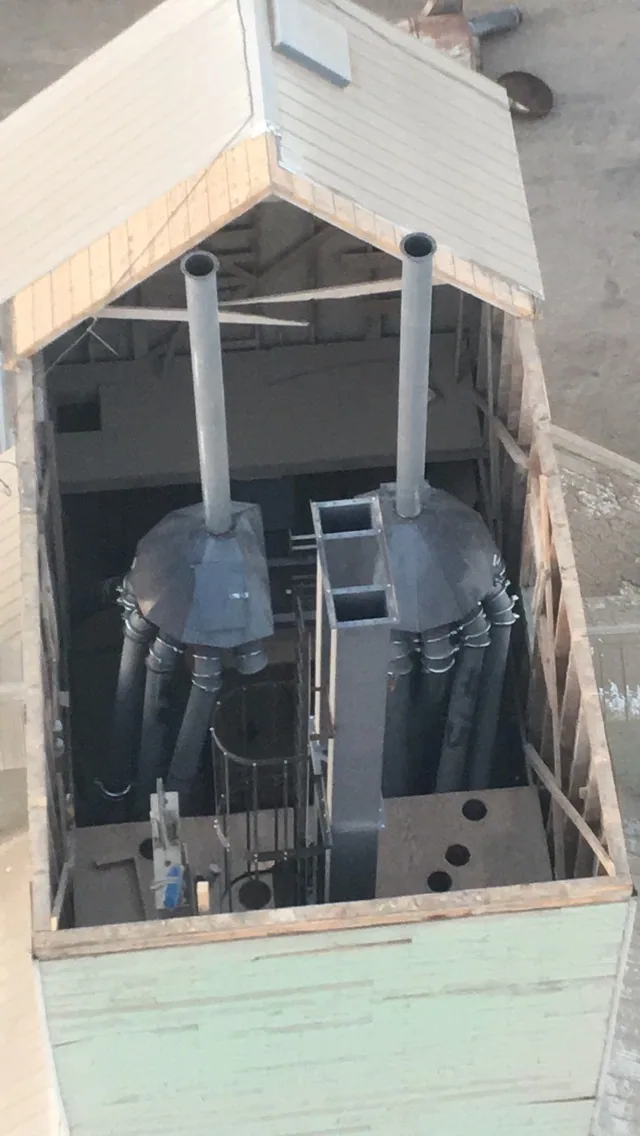

Steel grain leg fitted inside the existing building — 15Steel grain leg fitted inside the existing building

Steel grain leg fitted inside the existing building — 16Steel grain leg fitted inside the existing building

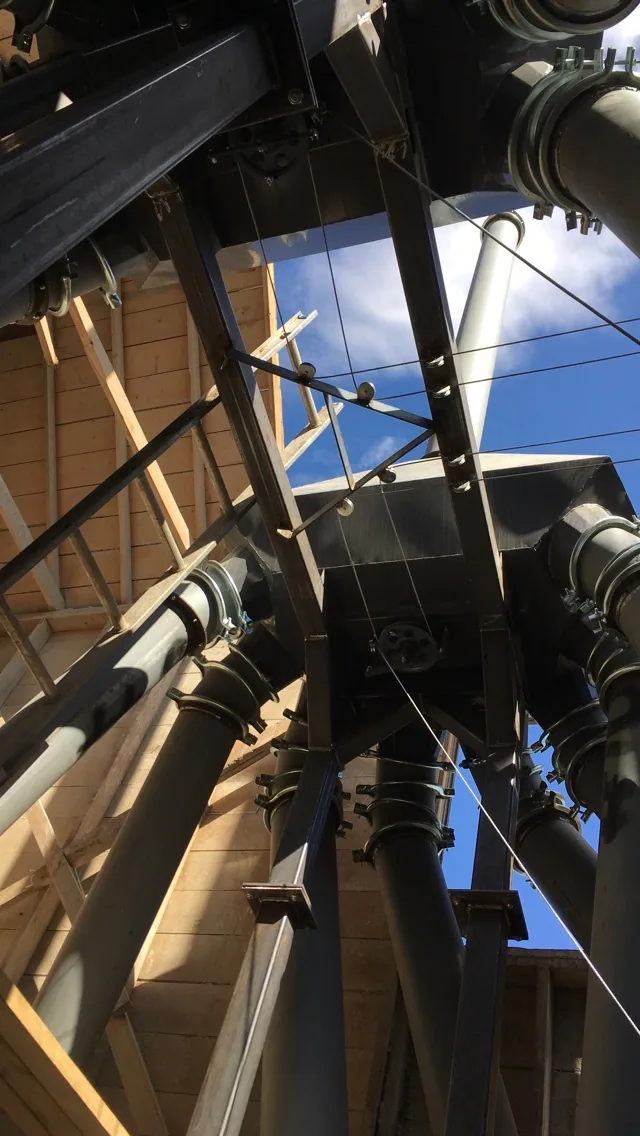

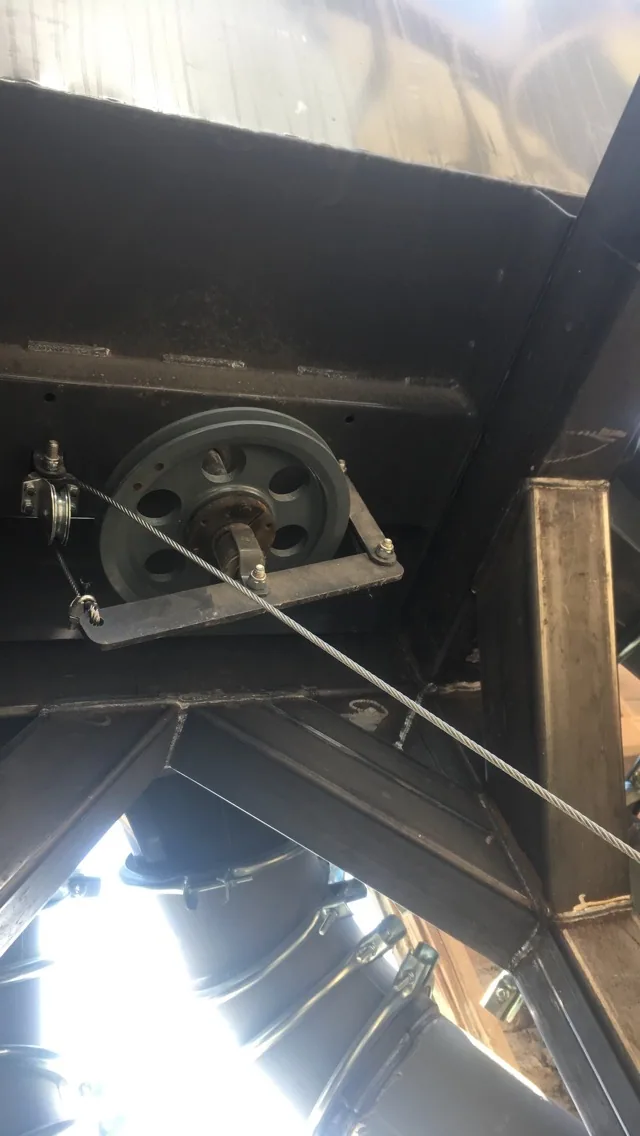

Steel grain leg fitted inside the existing building — 17Steel grain leg fitted inside the existing building

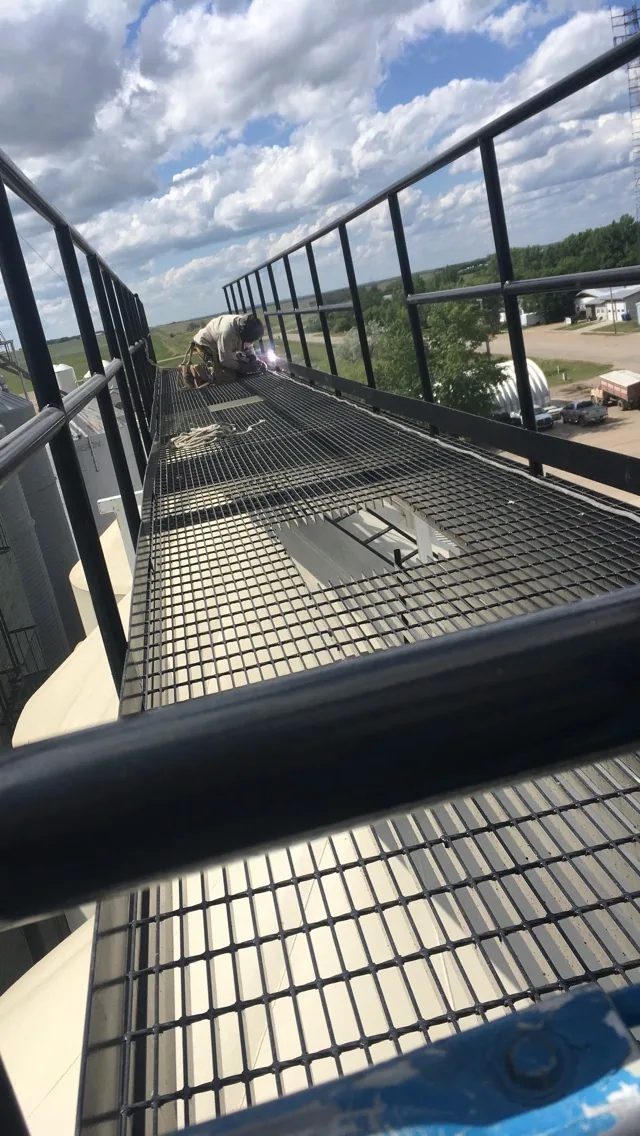

Exterior access platform and grain-handling connections — 18Exterior access platform and grain-handling connections

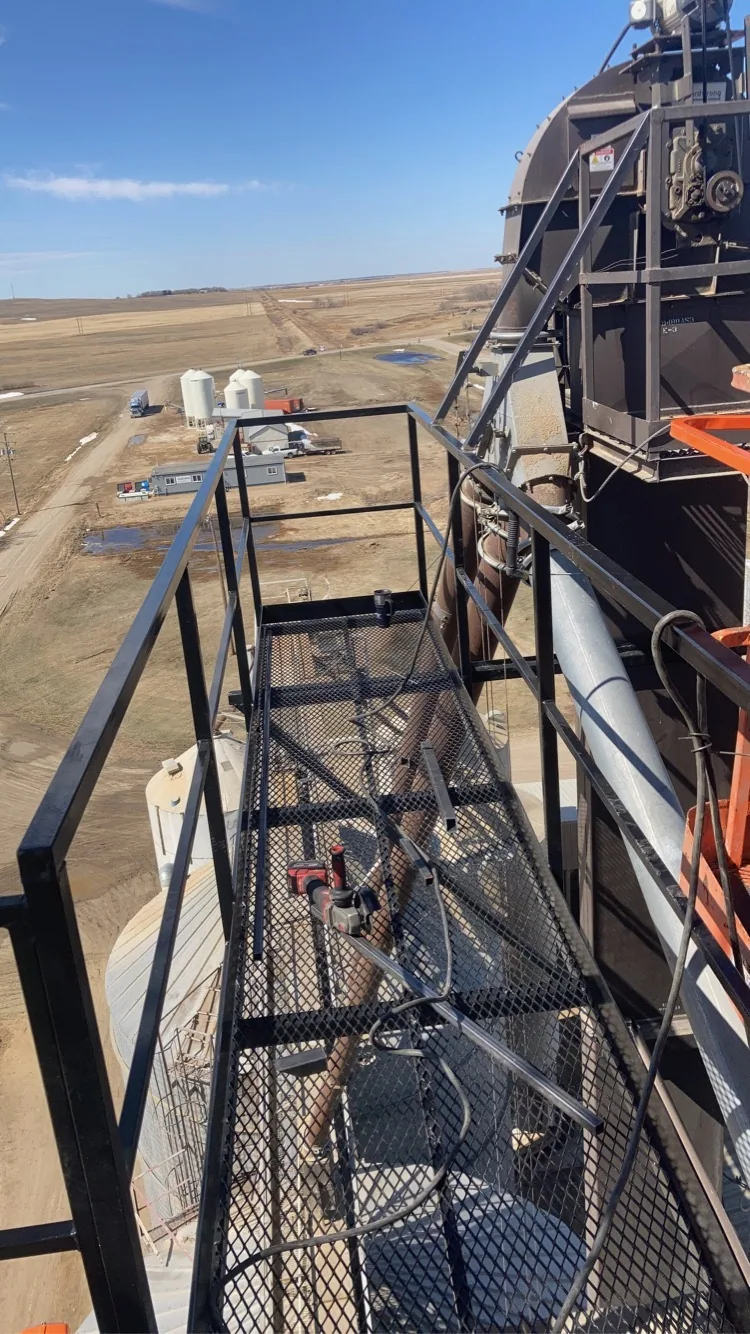

Exterior access platform and grain-handling connections — 19Exterior access platform and grain-handling connections

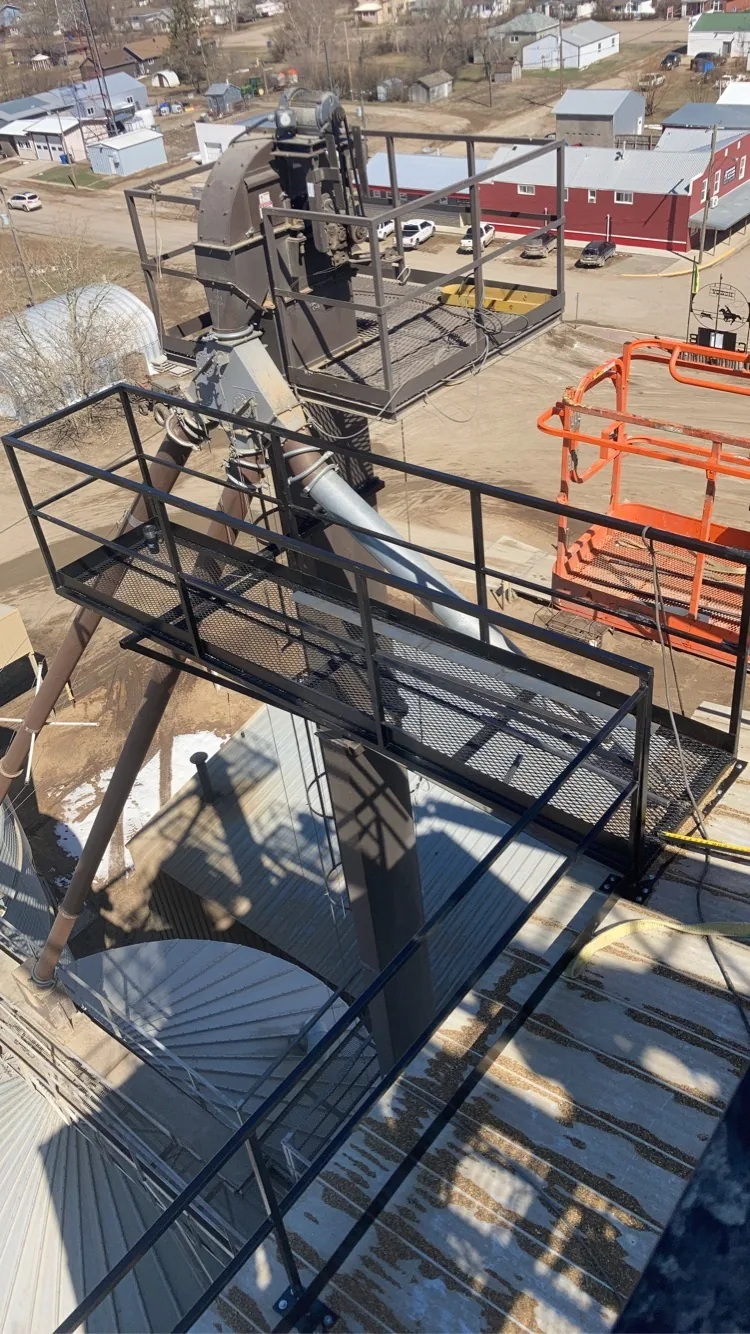

Exterior access platform and grain-handling connections — 20Exterior access platform and grain-handling connections

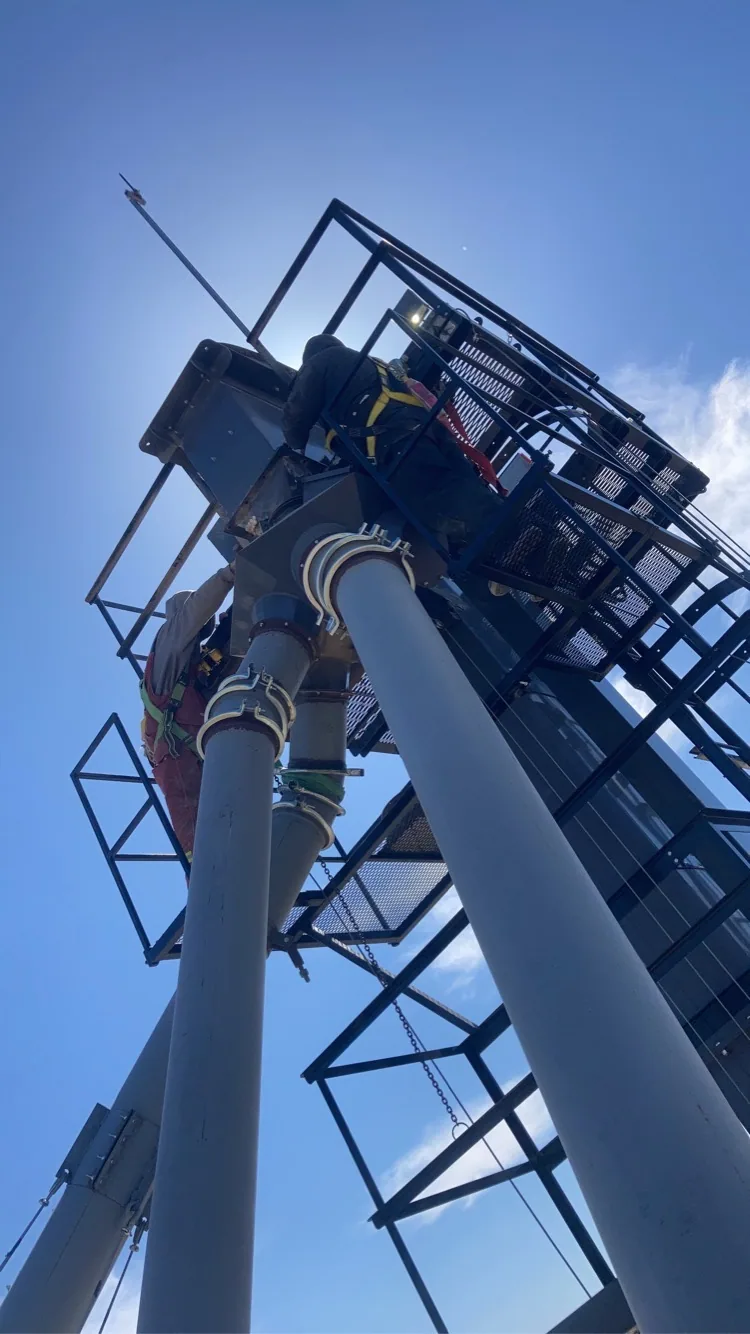

Steel bucket elevator head and access platform — 21Steel bucket elevator head and access platform

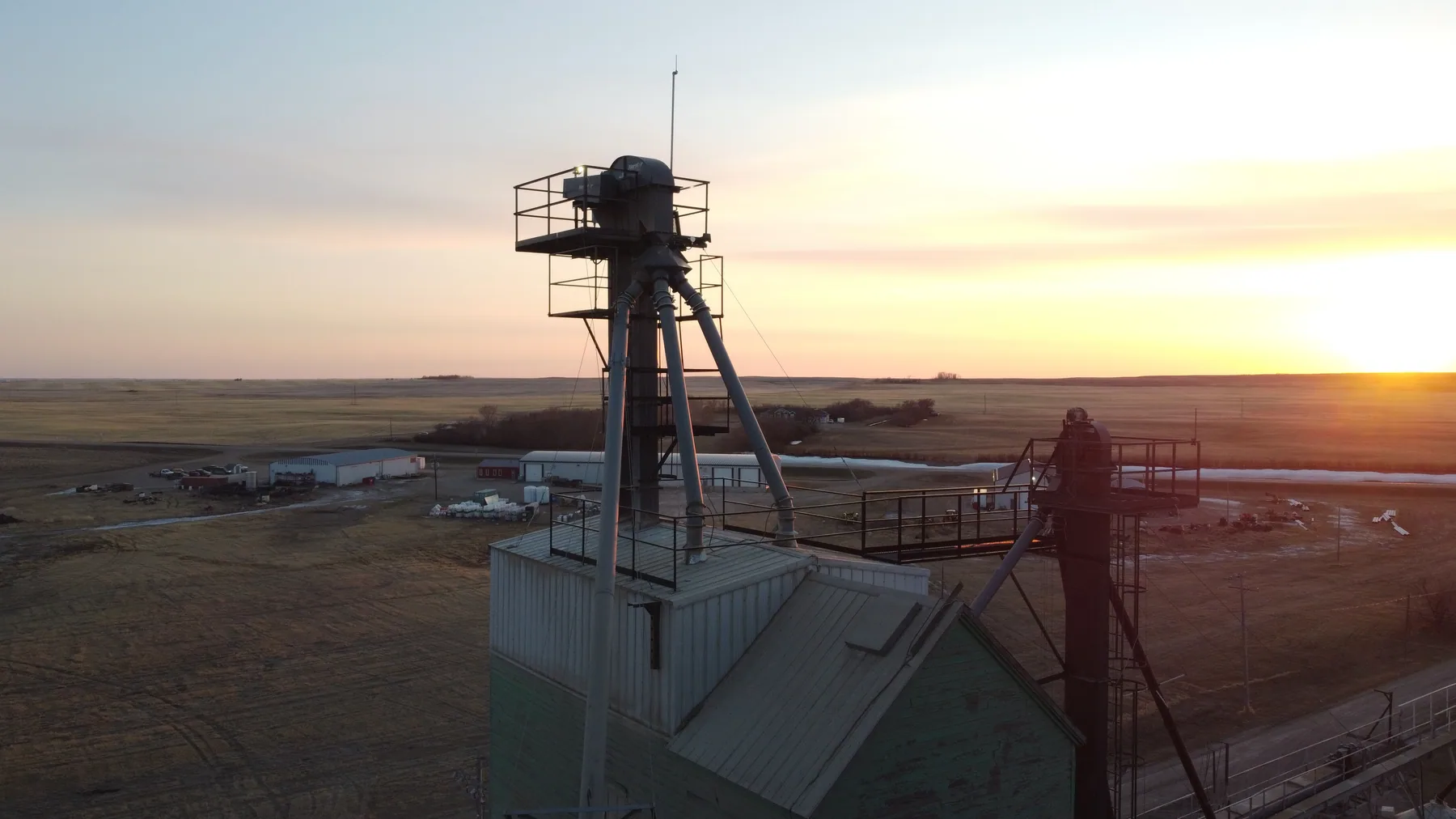

Steel replacement leg above the raised elevator roof — 22Steel replacement leg above the raised elevator roof
